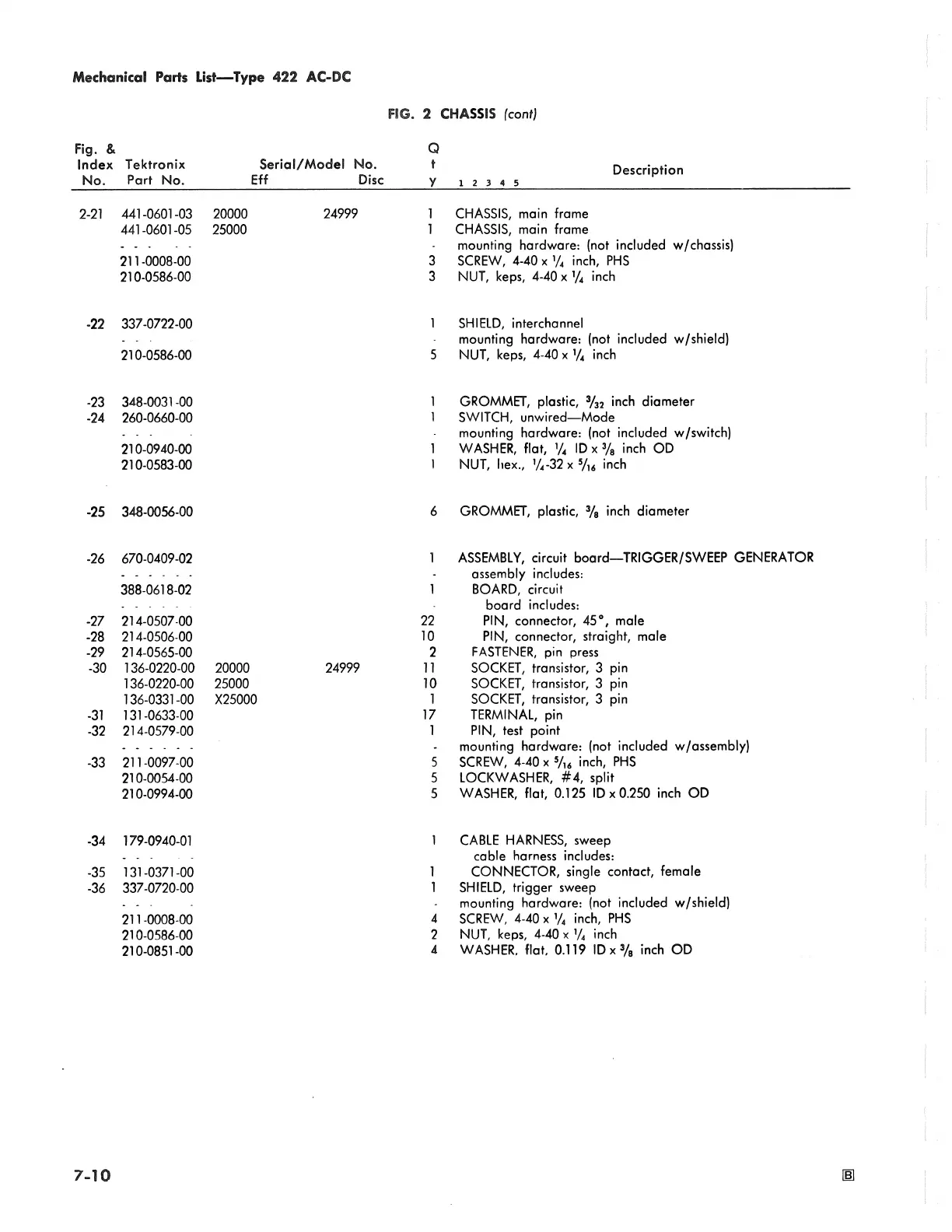

Mechanical Parts List— Type 422 AC-DC
FIG. 2 CHASSIS fconf)
Fig. &
Index
No.
Tektronix
Part No.
Serial/Model No.
Eff Disc
Q
t
y
Description
1 2 3 4 5
2-21 441-0601-03
20000
24999
i CHASSIS, main frame
441-0601-05
25000
i CHASSIS, main frame
......................................... -
mounting hardware: (not included w/chassis)
211 -0008-00
3
SCREW, 4-40 x % inch, PHS
210-0586-00
3
NUT, keps, 4-40 x y4 inch
-22 337-0722-00
1
SHIELD, interchannel
...
mounting hardware: (not included w/shield)
210-0586-00
5 NUT, keps, 4-40 x y4 inch
-23
348-0031 -00
1 GROMMET, plastic, 3/32 inch diameter
-24
260-0660-00
1
SWITCH, unwired—Mode
...
mounting hardware: (not included w/switch)
210-0940-00
1 WASHER, flat, V4 ID x % inch OD
210-0583-00
1
NUT, hex., V4-32 x s/ u inch
-25
348-0056-00
6
GROMMET, plastic, 3/8 inch diameter
-26
670-0409-02
1
ASSEMBLY, circuit board—TRIGGER/SWEEP GENERATOR
-
assembly includes:
388-0618-02
1
BOARD, circuit
........................................
board includes:
-27 214-0507-00
22 PIN, connector, 45°, male
-28 214-0506-00
10
PIN, connector, straight, male
-29
214-0565-00
2
FASTENER, pin press
-30
136-0220-00
20000
24999
11 SOCKET, transistor, 3 pin
136-0220-00 25000
10
SOCKET, transistor, 3 pin
136-0331-00 X25000
1
SOCKET, transistor, 3 pin
-31 131-0633-00
17
TERMINAL, pin
-32 214-0579-00
1 PIN, test point
-
mounting hardware: (not included w/assembly)
-33
211-0097-00
5
SCREW, 4-40 x s/ u inch, PHS
210-0054-00
5
LOCKWASHER, #4, split
210-0994-00
5
WASHER, flat, 0.125 ID x 0.250 inch OD
-34
179-0940-01
1
CABLE HARNESS, sweep
cable harness includes:
-35
131-0371-00
1
CONNECTOR, single contact, female
-36
337-0720-00
1 SHIELD, trigger sweep
...
mounting hardware: (not included w/shield)
211-0008-00
4 SCREW, 4-40 x % inch, PHS
210-0586-00
2
NUT, keps, 4-40 x y4 inch
210-0851-00
4
WASHER, flat, 0.119 ID x 3/8 inch OD
