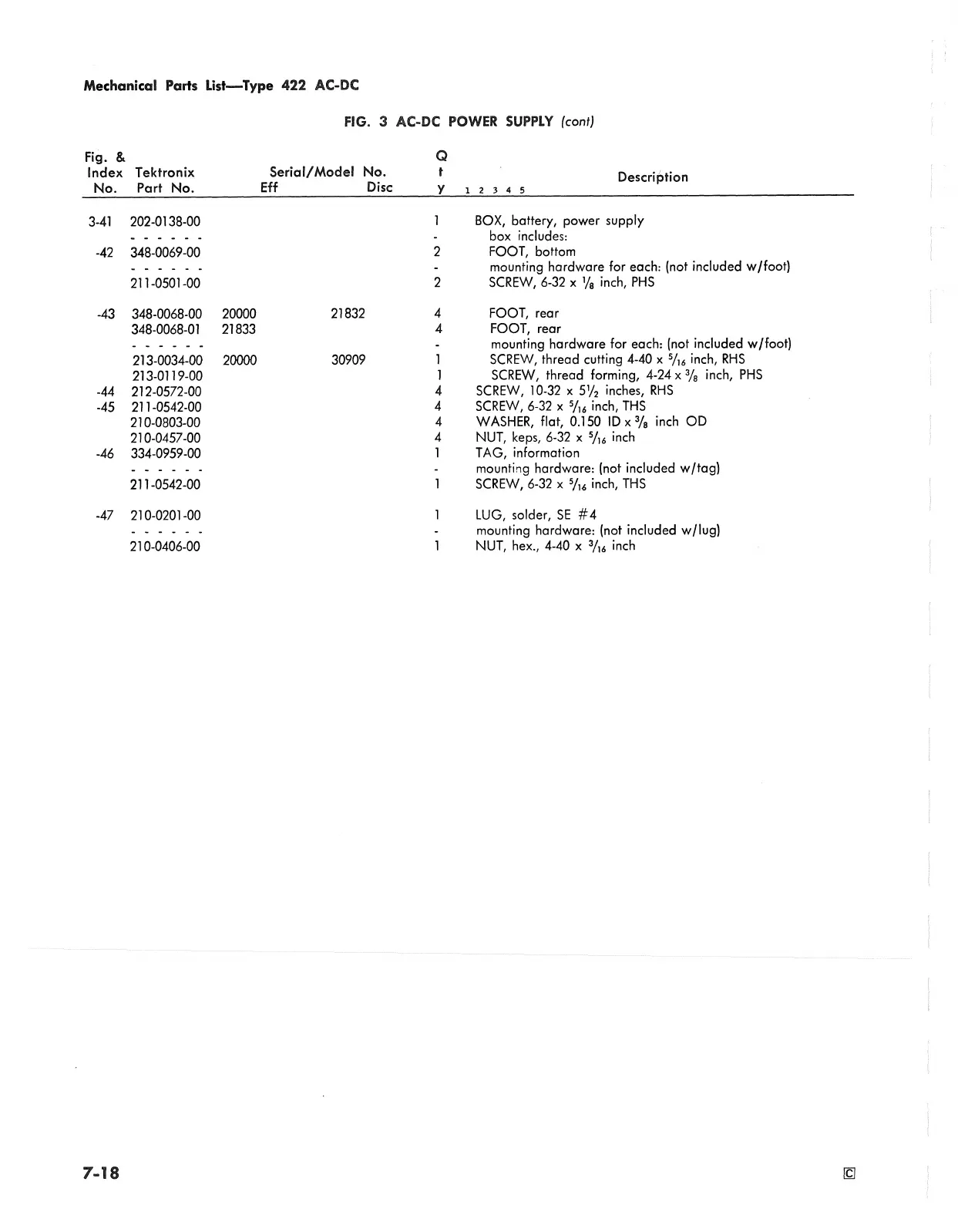

Mechanical Parts List— Type 422 AC-DC
FIG. 3 AC-DC POWER SUPPLY (cont)
Fig. &
Index
No.
Tektronix
Part No.
Serial/Model No.
Eff Disc
Q
t
y
Description
1 2 3 4 5
3-41
202-0138-00
i
BOX, battery, power supply
-
box includes:
-42
348-0069-00
2 FOOT, bottom
-
mounting hardware for each: (not included w/foot)
211-0501-00
2
SCREW, 6-32 x % inch, PHS
-43
348-0068-00
20000
21832
4 FOOT, rear
348-0068-01
21833
4
FOOT, rear
-
mounting hardware for each: (not included w/foot)
213-0034-00
20000
30909
1
SCREW, thread cutting 4-40 x s/ 16 inch, RHS
213-0119-00
1
SCREW, thread forming, 4-24 x % inch, PHS
-44 212-0572-00
4
SCREW, 10-32 x 5V2 inches, RHS
-45
211-0542-00
4
SCREW, 6-32 x 5/ 16 inch, THS
210-0803-00
4
WASHER, flat, 0.150 ID x 3/8 inch OD
210-0457-00
4
NUT, keps, 6-32 x 5/16 inch
-46
334-0959-00
1 TAG, information
-
mounting hardware: (not included w/tag)
211-0542-00
1
SCREW, 6-32 x 5/u inch, THS
-47 210-0201-00
1
LUG, solder, SE #4
-
mounting hardware: (not included w/lug)
210-0406-00
1
NUT, hex., 4-40 x 3/16 inch
:
:
;
:
7-18
