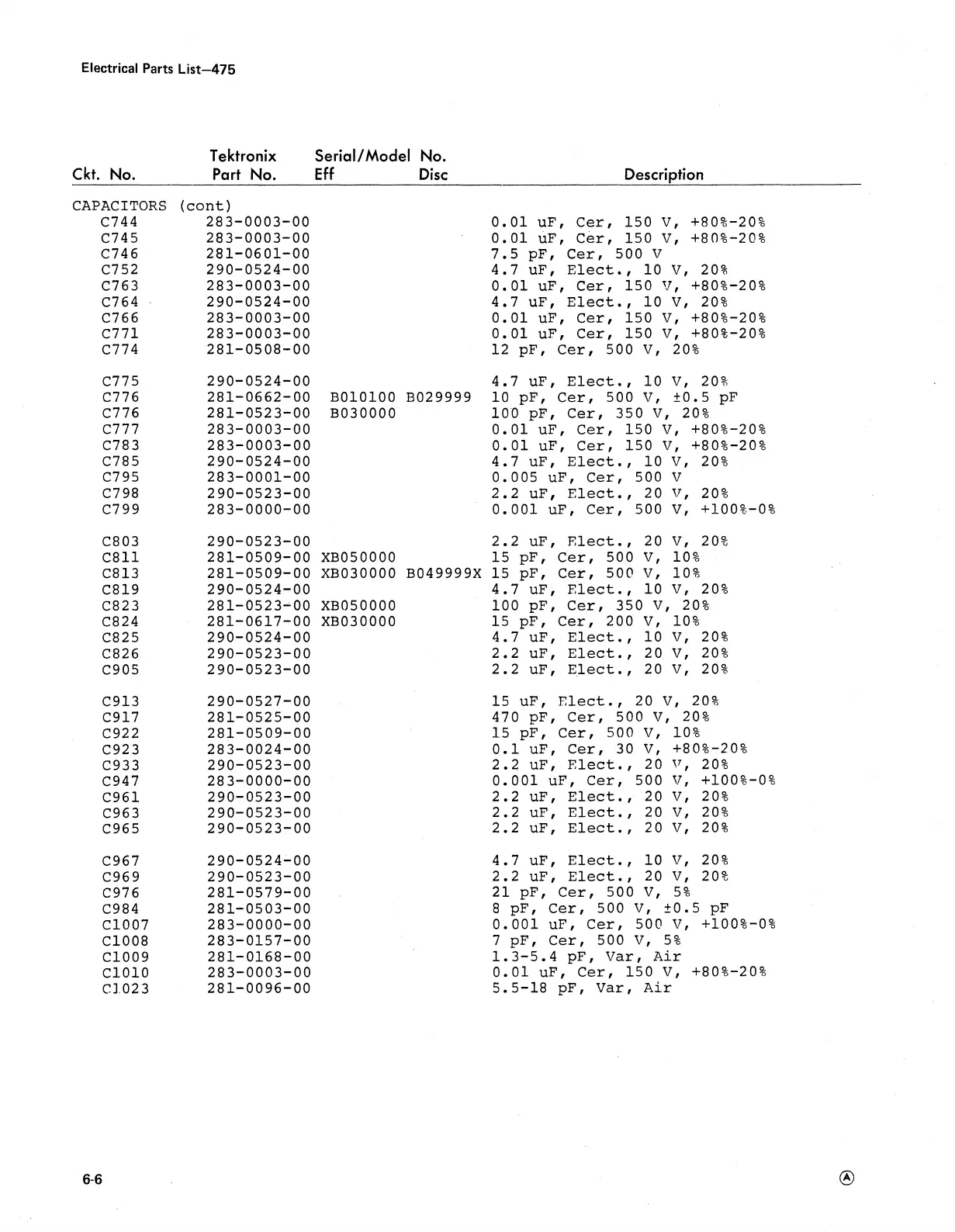

Electrical Parts List—475
Ckt. No.
Tektronix
Part No.
Serial/Model No.
Eff Disc
Description
CAPA CITO RS (cont)
C744
C74 5
C74 6
C752
C763
C764
C766
C771
C774
283-
283-
281-
290-
283-
290-
283-
283-
281-
0003-00
0003-00
0601-00
0524-00
0003-00
0524-00
0003-00
0003-00
0508-00
0.01 u F , Cer, 150 V, +80%-20%
0.01 uF, Cer, 150 V, +8O%-20%
7.5 pF, Cer, 500 V
4.7 uF, E l e c t . , 10 V, 20%
0.01 uF, Cer, 150 V, +80%-20%
4.7 uF, E l e c t . , 10 V, 20%
0.01 uF, Cer, 150 V, +80%-20%
0.01 uF, Cer, 150 V, +80%-20%
12 pF, Cer, 500 V, 20%
C775
290-0524-00 4.7 uF, E l e c t . , 10 V, 20%
C776
281-0662-0 0 B010100
B029999
10 pF, Cer, 500 V, ±0.5 pF
C776
281-0523-00
B030000 100 pF, Cer, 350 V, 20%
C777
283-0003-0 0
0.01 uF, Cer, 150 V, +801-20%
C783 283-0003-00
0.01 uF, Cer, 150 V, +80%-20%
C785
290-0524-0 0
4.7 uF, E l e c t . , 10 V, 20%
C795
283-0001-0 0
0.005 uF, Cer, 500 V
C798
290 -0523-00
2.2 uF, Elect., 20 V, 20%
C799
283 -0000-00
0.001 uF, Cer, 500 V, +100%-0%
C803 290-0523-00
2.2 uF, Elect., 20 V, 20%
C811
281 -0509-00
XB050000
15 pF, Cer, 500 V, 10%
C813 281 -0509-00 XB 0 3 0 0 0 0 B049 999X
15 pF, Cer, 500 V, 10%
C819
290-0524-00
4.7 uF, Elect., 10 V, 20%
C823 281-0523-00 XB050000
100 pF, Cer, 350 V, 20%
C824 281-0617-00
XB 0 3 0 0 0 0
15 pF, Cer, 200 V, 10%
C825 290-0524-00
4.7 uF, Elect., 10 V, 20%
C826
290-0523-00
2.2 uF, E l e c t . , 20 V, 20%
C905 290 -0523-00
2.2 uF, Elect., 20 V, 20%
C913 290-0527-00
15 uF, E l e c t . , 20 V, 20%
C917 281-0525-00
470 pF, Cer, 500 V, 20%
C922
281-0 509- 00
15 pF, Cer, 500 V, 10%
C92 3
283-0024-00
0.1 uF, Cer, 30 V, +80%-20%
C933
290-0523-00
2.2 uF, E l e c t . , 20 v, 20%
C947
283 -0000-00
0.001 uF, Cer, 500 V, +100%-0%
C961
290 -0523-00
2.2 uF, E l e c t . , 20 V, 20%
C963
290 -0523-00
2.2 uF, Elect., 20 V, 20%
C965
290 -0523-00
2.2 uF, E l e c t . , 20 V, 20%
C967
290-0524-00
4.7 uF, Elect., 10 V, 20%
C96 9
290-0523-00
2.2 uF, Elect., 20 V, 20%
C976
281-0579-00
21 pF, Cer, 500 V, 5%
C984 281-0503-00
8 pF, Cer, 500 V, ±0.5 pF
C1007
283 -0000-00
0.001 uF, Cer, 500 V, +100%-0%
C1008
283 -0157-00
7 pF, Cer, 500 V, 5%
C1009
281-0168-00
1.3-5.4 pF, Var, A ir
C1010
283-0003-00
0.01 uF, Cer, 150 V, +80%-20%
C 10 2 3
281-0096-00
5.5-18 pF, Var, Air
6-6
