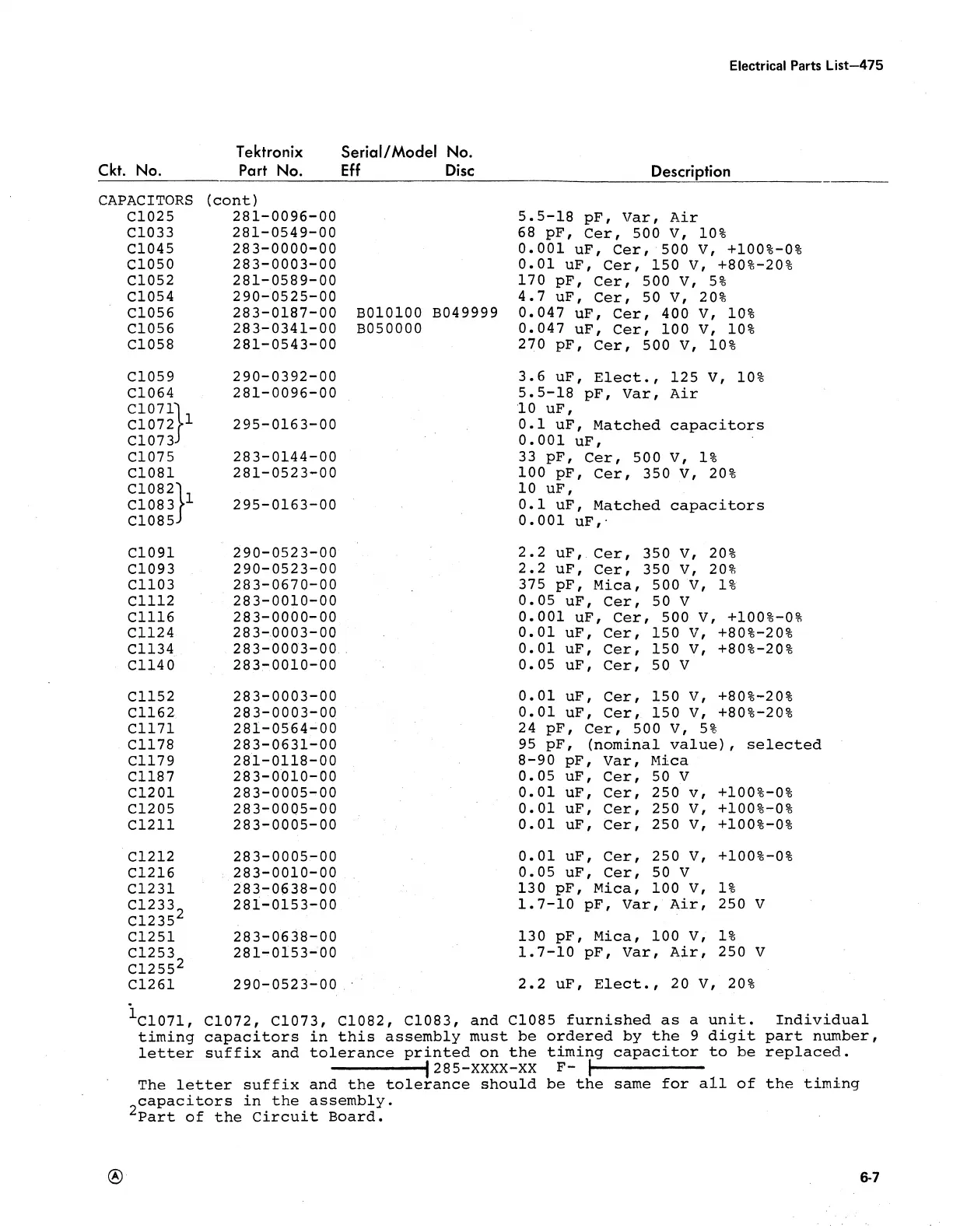

Electrical Parts List—475
Ckt. No.
Tektronix Serial/Model
Part No. Eff
No.
Disc
Description
CAP ACITORS (cont)
C1025 281-0096-00
5.5-18 pF, Var, Air
C1033
281 -0549-00
68 pF, Cer, 500 V, 10%
C1045
283-0000-00
0.001 uF, Cer, 500 V, +100%-0%
C1050
283 -0003-00
0.01 uF, Cer, 150 V, +80%-20%
C1052
281 -0589-00
170 pF, Cer, 500 V, 5%
C1054
290-0525-00
4.7 uF, Cer, 50 V, 20%
C1056 283-0187-00 B010100 B049999
0.047 uF, Cer, 400 V, 10%
C1056 283-0341-00 B050000
0.047 uF, Cer, 100 V, 10%
C1058
281-0543-00 270 pF, Cer, 500 V, 10%
C1059
290 -0392-00
3.6 uF, Elect., 125 V, 10%
C1064 28 1-0096-00
5.5-18 pF, Var, Air
C 10 711
10 uF,
C 1 0 7 2 > 1
295-0163-00
0.1 uF, M a t c h e d capacitors
C1073J
0.001 uF,
C107 5 283-0144-00
33 pF, Cer, 500 V, 1%
C1081
281 -0523-00
100 pF, Cer, 350 V, 20%
C10821
10 uF,
C1083 Y1 295-0163-00
0.1 uF, Matched capacitor s
C1085J 0.001 uF,-
C1091
290-0523-00
2.2 uF, Cer, 350 V, 20%
C1093
290-0523-0 0
2.2 uF, Cer, 350 V, 20%
C1103
283 -0670-00
375 pF, Mica, 500 V, 1%
C1112 283- 0010-00
0.05 uF, Cer, 50 V
C1116
283-0000-00
0.001 uF, Cer, 500 V, +100%-0%
C1124
283-0003-00
0.01 uF, Cer, 150 V, +80%-20%
C1134 28 3-0003-00
0.01 uF, Cer, 150 V, +80%-20%
C1140
283-0010-0 0
0.05 uF, Cer, 50 V
C1152
283-0003-00 0.01 uF, Cer, 150 V, +80%-20%
C1162
283-0003-0 0 0.01 uF, Cer, 150 V, +80%-20%
C1171
281-0564-00 24 pF, Cer, 500 V, 5%
C1178 283-0631-00
95 pF, (nominal v a l u e ) , selected
C1179
281-0118-00 8-90 pF, Var, Mic a
C1187
283-0010-00
0.05 uF, Cer, 50 V
C1201
283-0005-00
0.01 uF, Cer, 250 v, +100%-0%
C1205 283-0005-00
0.01 uF, Cer, 250 V, +100%-0%
C1211
283-0005-00
0.01 uF, Cer, 250 V, +100%-0%
C1212 283-0005-00
0.01 uF, Cer, 250 V, +100%-0%
C1216
283-0010-00
0.05 uF, Cer, 50 V
C1231
283-0638-00
130 pF, Mica, 100 V, 1%
C1233
281 -0153-00
1.7-10 pF, Var, Air, 250 V
C 1 2 3 5 2
C1251
283-0638-00
130 pF, Mica, 100 V, 1%
C1253
281-0153-0 0
1.7-10 pF, Var, Air, 250 V
C 1 2 5 5 2
C1261
290-0523-00
2.2 uF, Elect., 20 V, 20%
1C 1 0 7 1 ,
C 1 0 7 2 , C1073, C 1 0 8 2 , C1083, and
C1085 furnis hed as a unit. Individual
timing capacitors in this assembl y must be o rder ed by the 9 d igit part number,
letter suffix and tolerance pri nted on the timing capa citor to be replaced.
------------ 1 285-X XXX- XX F~ | ---------------
The letter suffix and the tolerance should be the same for all of the timing
cap acitors in the assembly.
2Part of the Circuit Board.
©
6-7
