475

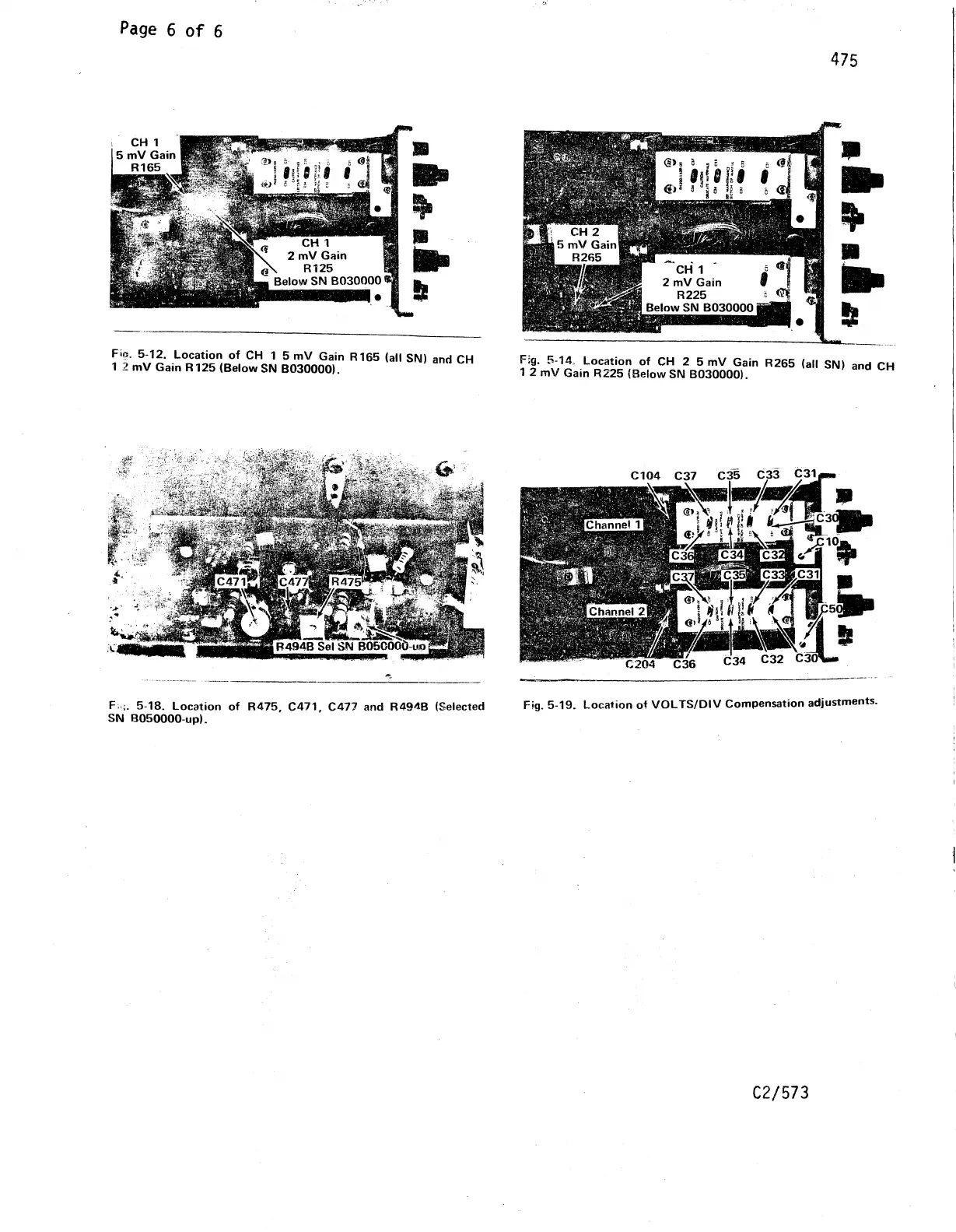

Fio. 5-12. Location of CH 1 5 mV Gain R165 (all SN) and CH
1 2 mV Gain R125 (Below SN B030000).
Fig. 5-14, Location of CH 2 5 mV Gain R265 (all SN) and
1 2 mV Gain R225 (Below SN B030000)
F 5 18. Location of R475, C471, C477 and R494B (Selected Fig. 5-19. Location of VO LTS/D IV Compensation adjustments.
SN B050000-up).
I
C2/573
