Rackmount/Benchtop Versions—492/492P Service Vol. 1 (SN B030000 & up)
DEEP RACK CONFIGURATION:
Stationary
section of
slideout
track
DEEP RACK CONFIGURATION:
SHALLOW RACK CONFIGURATION:
8-32
FHS
screw
(2 ea)
SHALLOW RACK CONFIGURATION:
BHS
screw
Stationary
section of
slideout
track
(A) Rear rail tapped for 10-32 screws
(B) Untapped rear rail

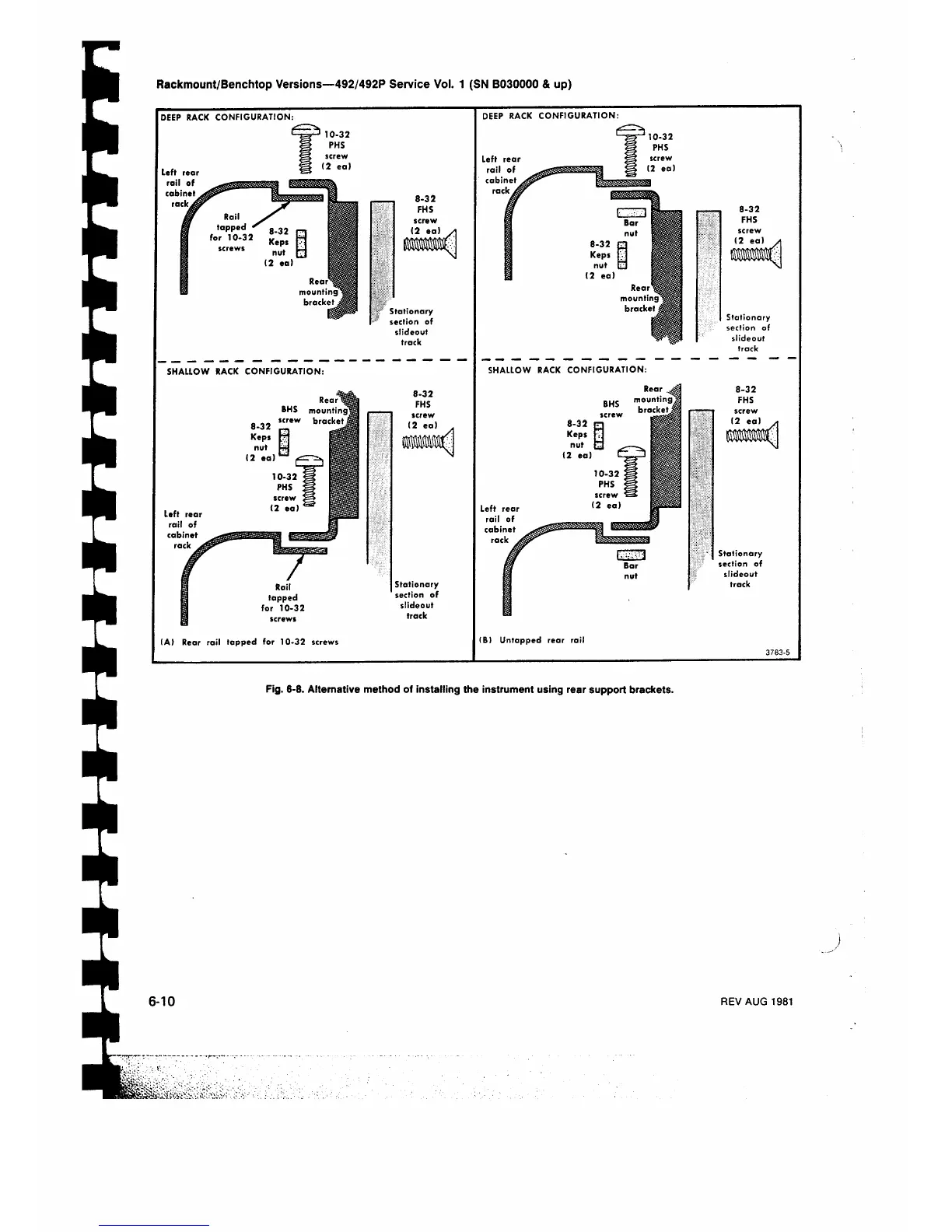

Fig. 6-8. Alternative method of installing the instrument using rear support brackets.
6-10
s) V
REV AUG 1981
