Tektronix 5 Series User Manual

5. To further configure cursors, double-tap on either cursor line or the cursor readouts to open the Cursors configuration menu. For
example, tap the Cursor type to select the cursors to display, such as Waveform, V Bars, H Bars, and V&H Bars.

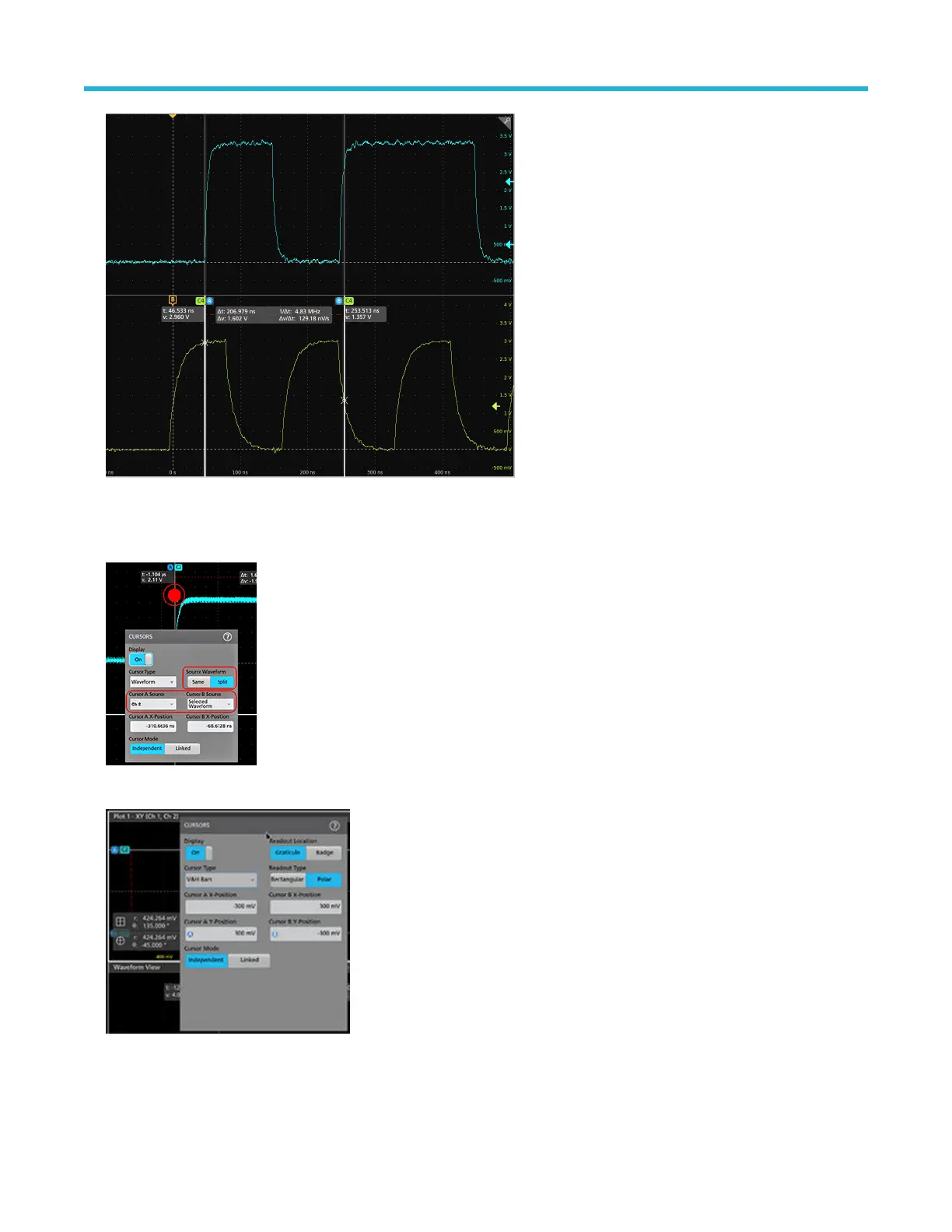

The cursor configuration menu in the waveform view.
The cursor configuration menu in an XY plot.
6. To split the cursors between two waveforms, tap the Source field and select Split and select the source for each cursor. The cursors
are moved to the specified waveforms.
Operating basics
MSO58LP 5 Series MSO Low Profile Quick Start Manual 59
