Tektronix AFG1000 Series User Manual

Instrument front panel, interface, and rear panel
AFG1000 Series Quick Start User Manual
23
Rear panel

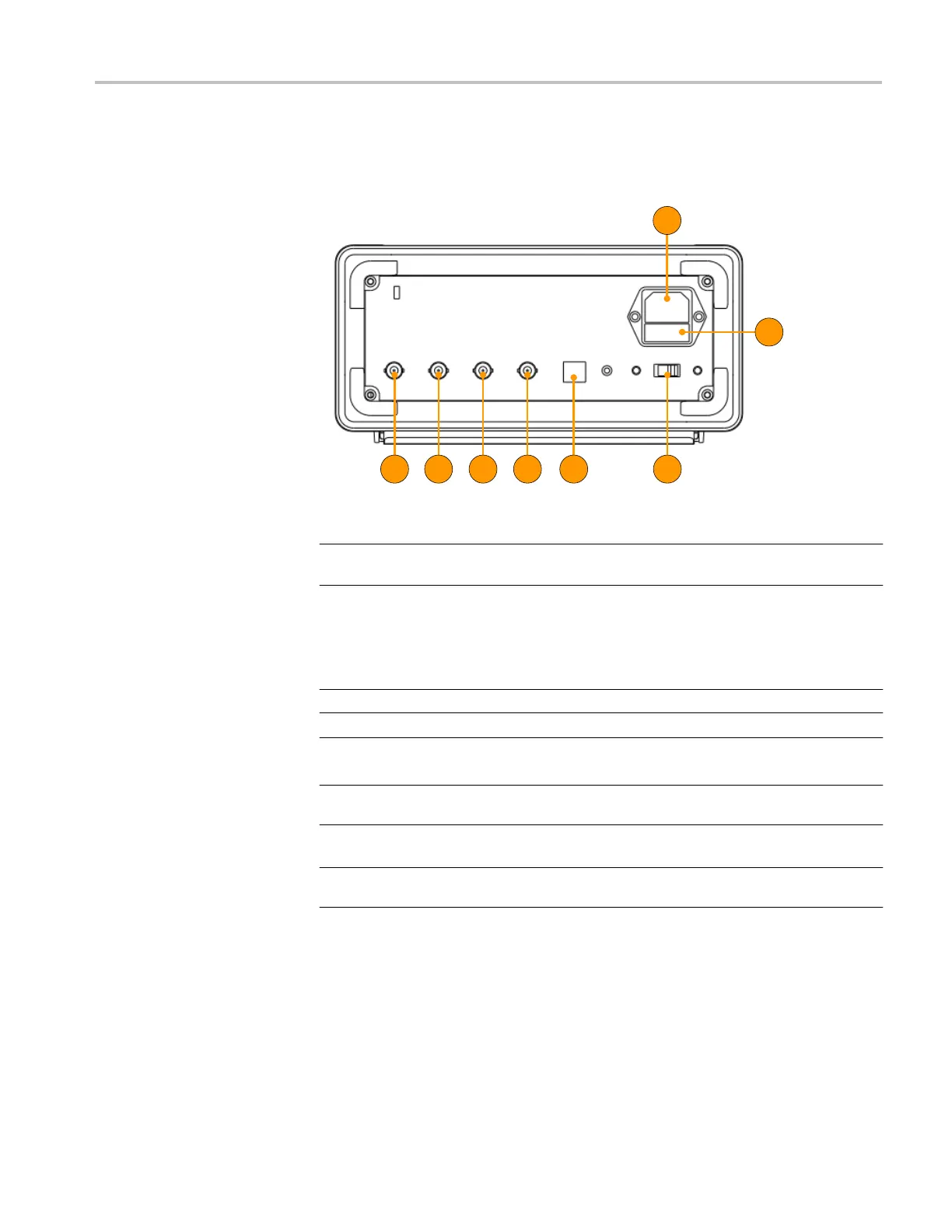

The following illustration shows the rear panel connectors for the instrument.
1
2
345
6
78
Item Description
1 Power input: This is where you attached an appropriate power cord to supply
power to the instrument.
2 Fuse: Use the specified fuse according to the voltage scale.
The rating of replaceable fuse:
Voltage Fuse
100 - 120 V
250 V, F1AL
220 - 240 V
250 V, F0.5AL
3 Power line selector: Switch between 110 V / 220 V.
4 USB (type B) connector: This can be used to connect a USB type B controller.
5 Ext Mod In Connector: This is the BNC connector for an external
modulation input. It can be used to input a modulating signal.
6 Fsk/Ext Trig In connector: This is the BNC connector for an FSK/ASK/PSK/external
trigger/burst input.
7 Ref Clk/Counter In connector: This is the BNC connector for an external reference
clock or counter input.
8 Ref Clk Out connector: This is the BNC connector for an external reference clock
output.
