AFG1000 Series Quick Start User Manual
27
Operating basics

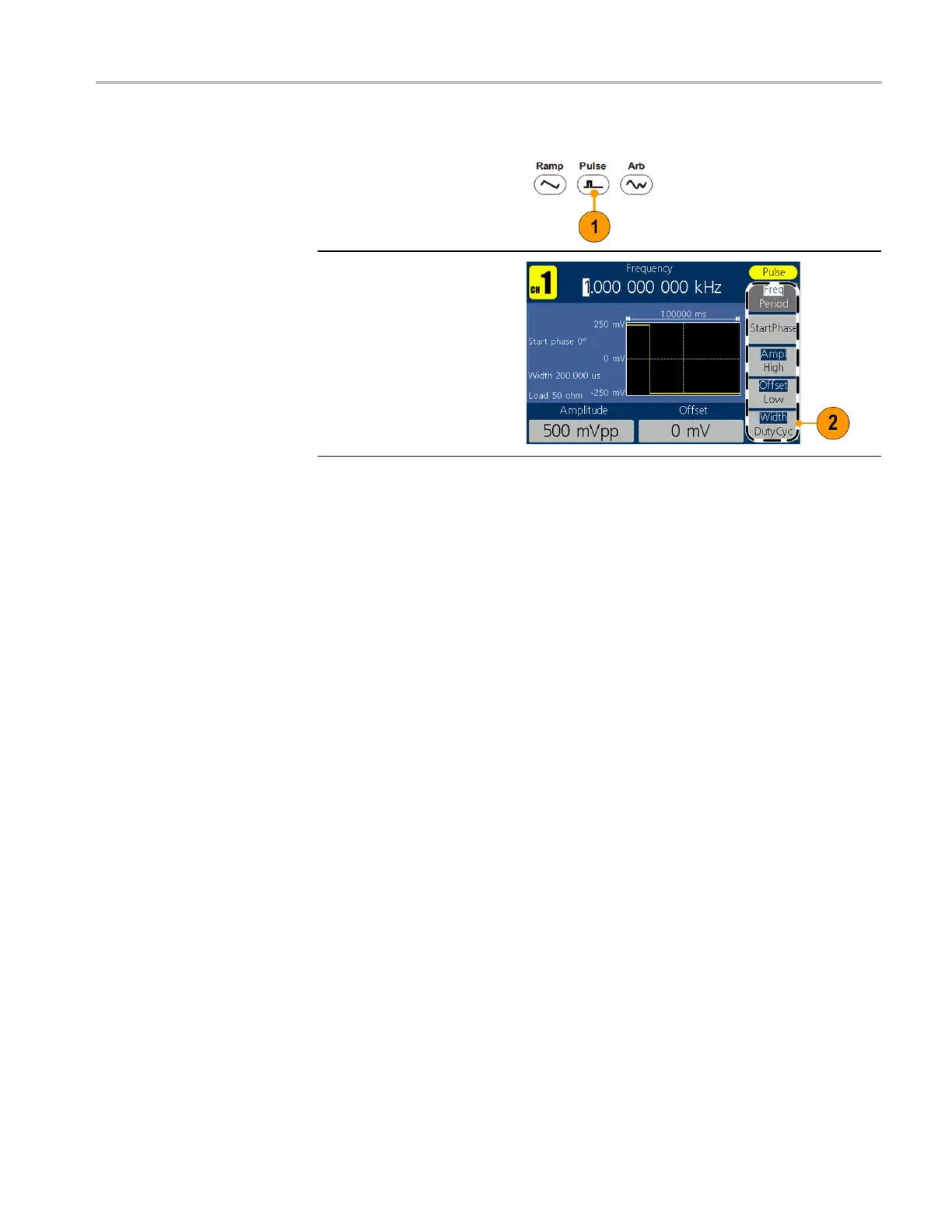

Generate a pulse waveform
1. Push the front-panel
Pulse button to display
the Pulse screen.
NOTE: All of the following
parameters can be adjusted
using the
numeric keypad or the
general purpose knob.
2. Press Width/DutyCyc and
adjust the parameter as
needed. Adjust the other
parameters in the same way.
