Operating basics
36
AFG1000 Series Quick Start User Manual

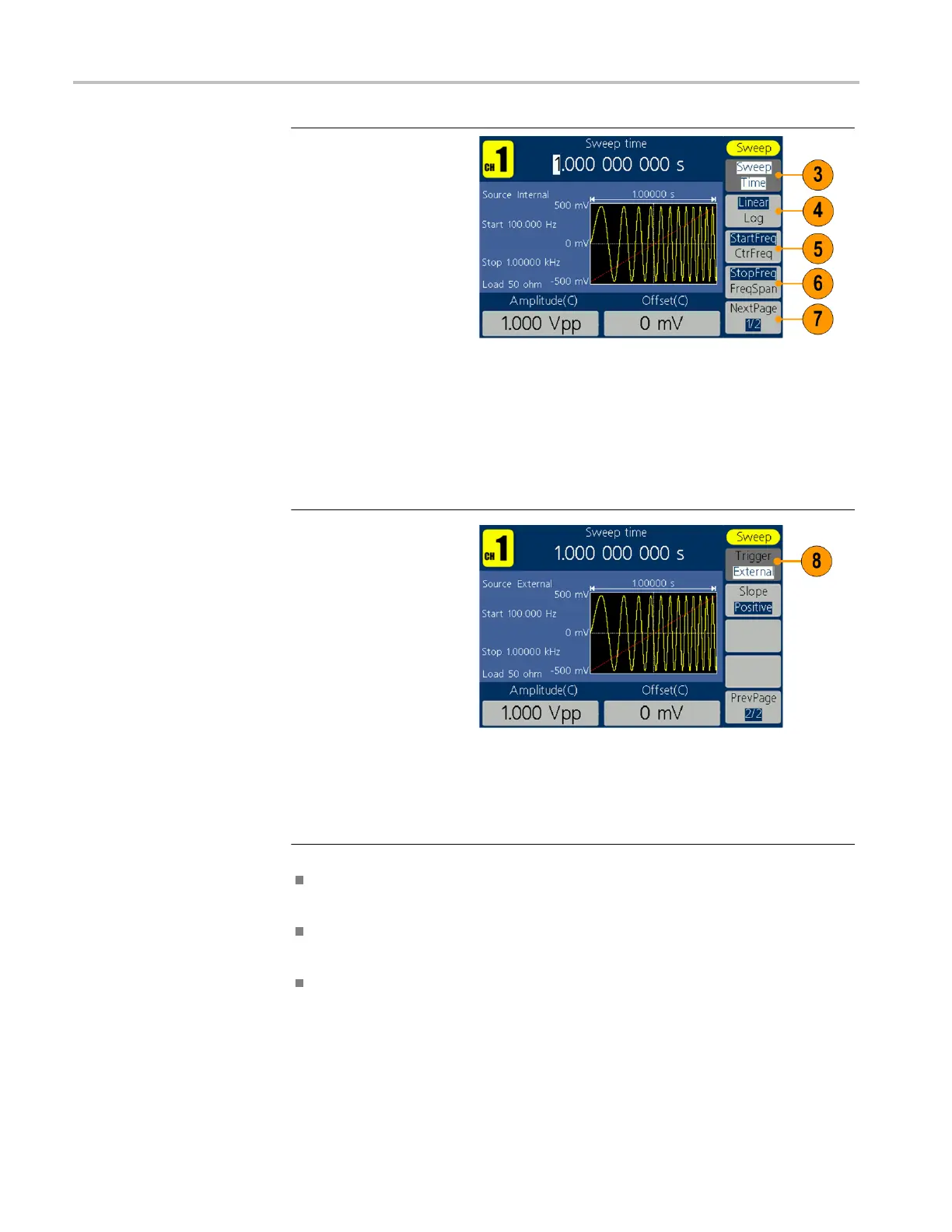

3. Press Sweep Time to
set the time between
the start and stop
frequency.
4. Press Linear/Log to
select the sweep type.
5. Press StartFreq/
CtrFreq. Use the
general purpose knob
or the numeric keypad
to set the start or the
center frequency.
6. Press StopFreq/
FreqSpan. Use the
general purpose knob
or the numeric keypad
to set the stop
frequency and the
frequency span.
7. Press NextPage to
enter next submenu.
8. Press Trigger to
choose a source
between internal,
external, and manual.
External defines the
source input from the
Fsk/Ext Trig In
interface. Press Slope
to switch between
Positive and Negative.
Manual defines
starting the sweeping
whenever the general
purpose knob is
pushed.
NOTE: All the parameters can
be adjusted by the general
purpose knob or the keypad.
Sweep frequency facts
If a start frequency is lower than a stop frequency, the instrument sweeps from
the low frequency to the high frequency.
If a start frequency is higher than a stop frequency, the instrument sweeps
from the high frequency to the low frequency.
Once the sweep is selected, the frequency is swept from the sweep start to
the sweep stop frequencies.
