AFG1000 Series Quick Start User Manual
6.

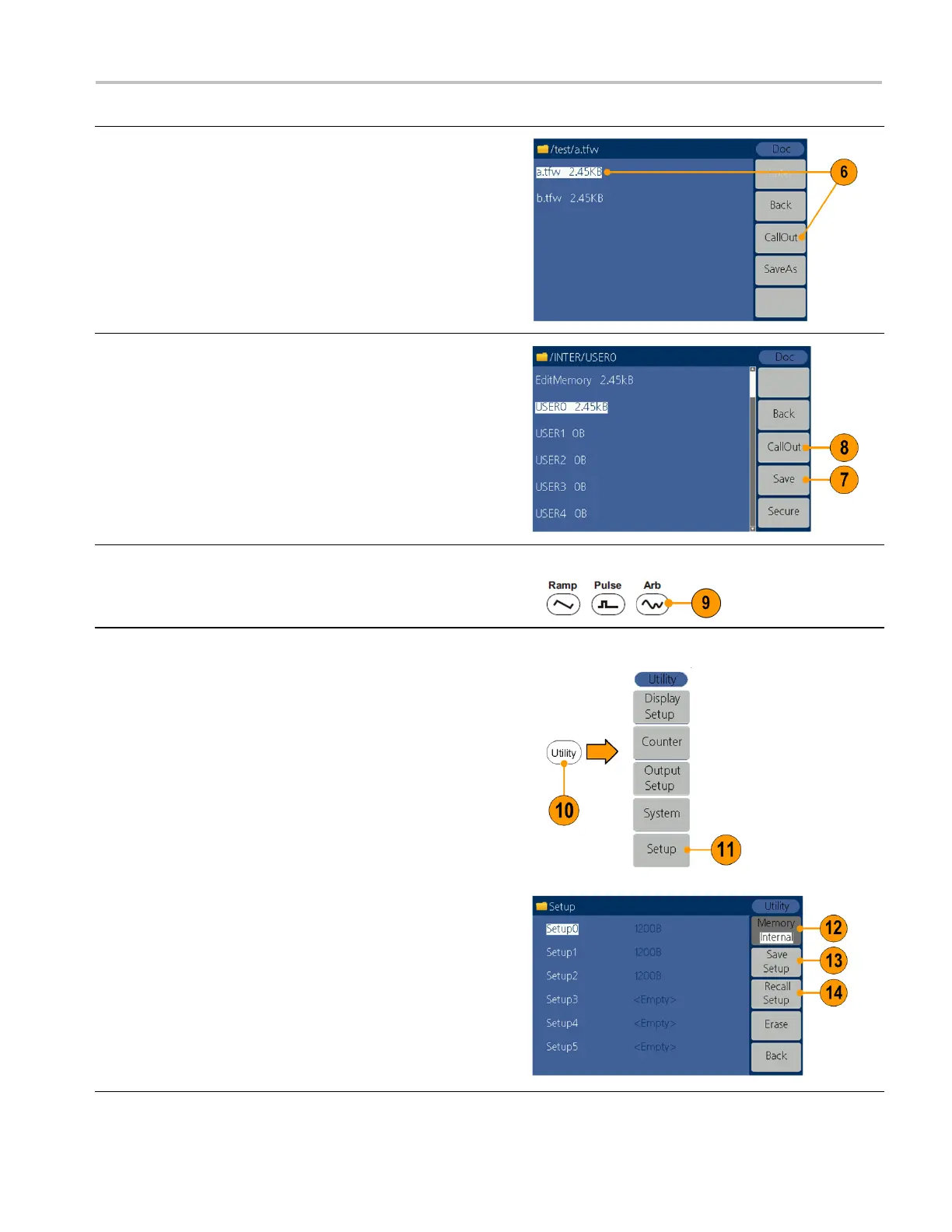

Select a folder or file using the knob. Select the file with the .tfw
suffix, and then press CallOut. A prompt "File read successful."
appears.
7.
Press Back to return to the upper directory. In the interface of
selecting memory, use the general purpose knob to select INTER
and then press Enter. Use the general purpose knob to select a
USER file. Press Save to copy the waveform file to the internal
memory.
8.
Press CallOut. A prompt "File read successful." appears.
Set the waveform parameters
9.
Push the Arb panel button to go back to the waveform interface.
Set the waveform parameters such as frequency and amplitude.
Save the instrument setup
10.
Push the front-panel Utility
button.
11.
Press Setup.
12.
Press Memory to select Internal.
13.
Use the front panel general purpose knob to select a file from
Setup0 through Setup31. Press Save Setup.
Recall the setup and waveform
14.
To output this waveform, select the saved setup, press Recall
Setup to recall the setup and waveform.
To Next Page
