Operating basics
AFG31000 Series Arbitrary Function Generator Service Manual
17
Power the instrument
The following procedure shows you how to connect the instrument to power and turn it on and off.
Connect the power cord:
1. Make sure the front-panel power switch is in the off position.
2. Connect the female end of the supplied power cord to the ac receptacle on the rear panel.
3. Connect the male end of the power cord to a grounded ac outlet.
To power on the instrument:
Press the front-panel power switch to turn on the instrument.

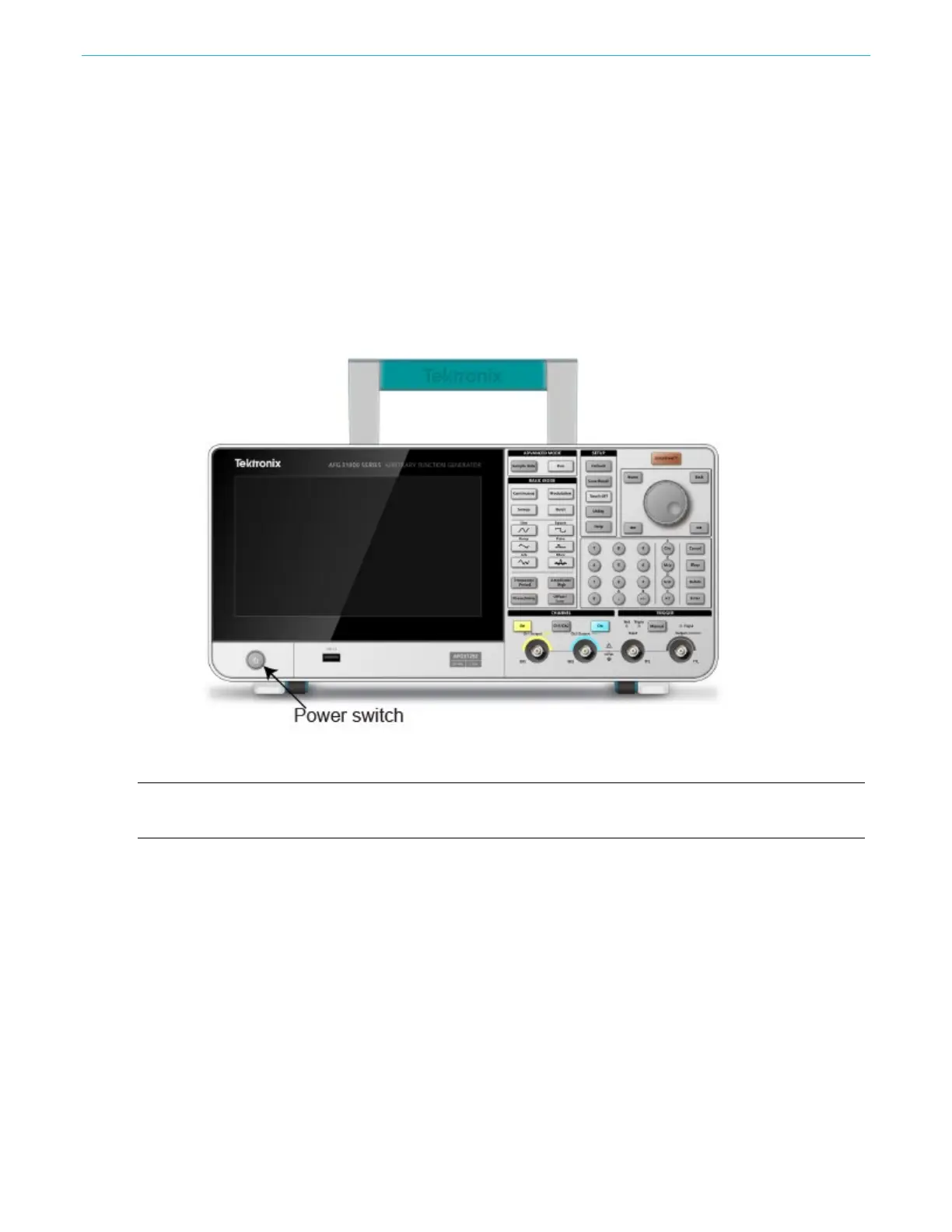

Figure 4: AFG31000 Series two-channel front view
NOTE: Wait until the front-panel
display shows that the instrument has passed all power-on self-tests
before using the instrument.
