Removal and installation
50
AFG31000 Series Arbitrary Function Generator Service Manual
Front-panel board: Power button, keypad, and LCD module
removal and installation
You will need a torque-limiting Torx T-15 screwdriver, pliers, and tweezers for this procedure. Refer to
the following figure and follow the steps below to remove the front panel board and keypad.
To remove the front panel board and keypad:
1. Use tweezers to grasp the springs; remove the eight screws attaching the front panel board to the
front cover (refer to the following figure).
2. Remove the encoder plastic cover.
3. Reverse the whole module to be the other side.
4. Remove the front panel board and keypad.
5. Remove the power button.
6. Use an 8 mm socket driver to remove the six locknuts attaching the LCD module to the front
cover.
7. Remove the LCD module
NOTE: To install all the parts, perform the removal procedure in reverse order.

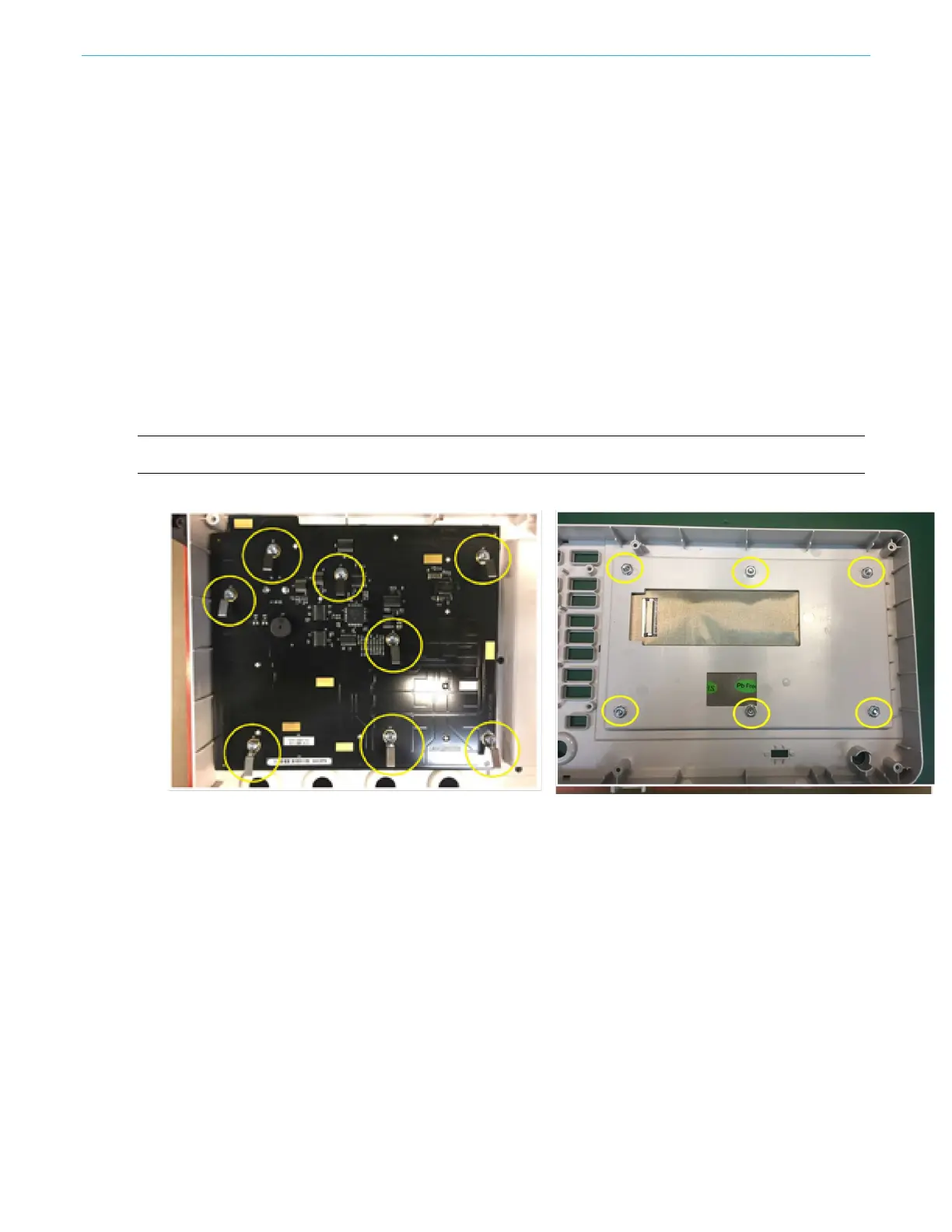

Figure 25: Front panel board and keyboard
