Troubleshooting
83
AFG31000 Series Arbitrary Function Generator Service Manual
5. Wait until the test is completed. The diagnostics test takes eight minutes to complete.
6. To perform calibration, select Run.
7. Select OK to perform calibration or Cancel to exit.

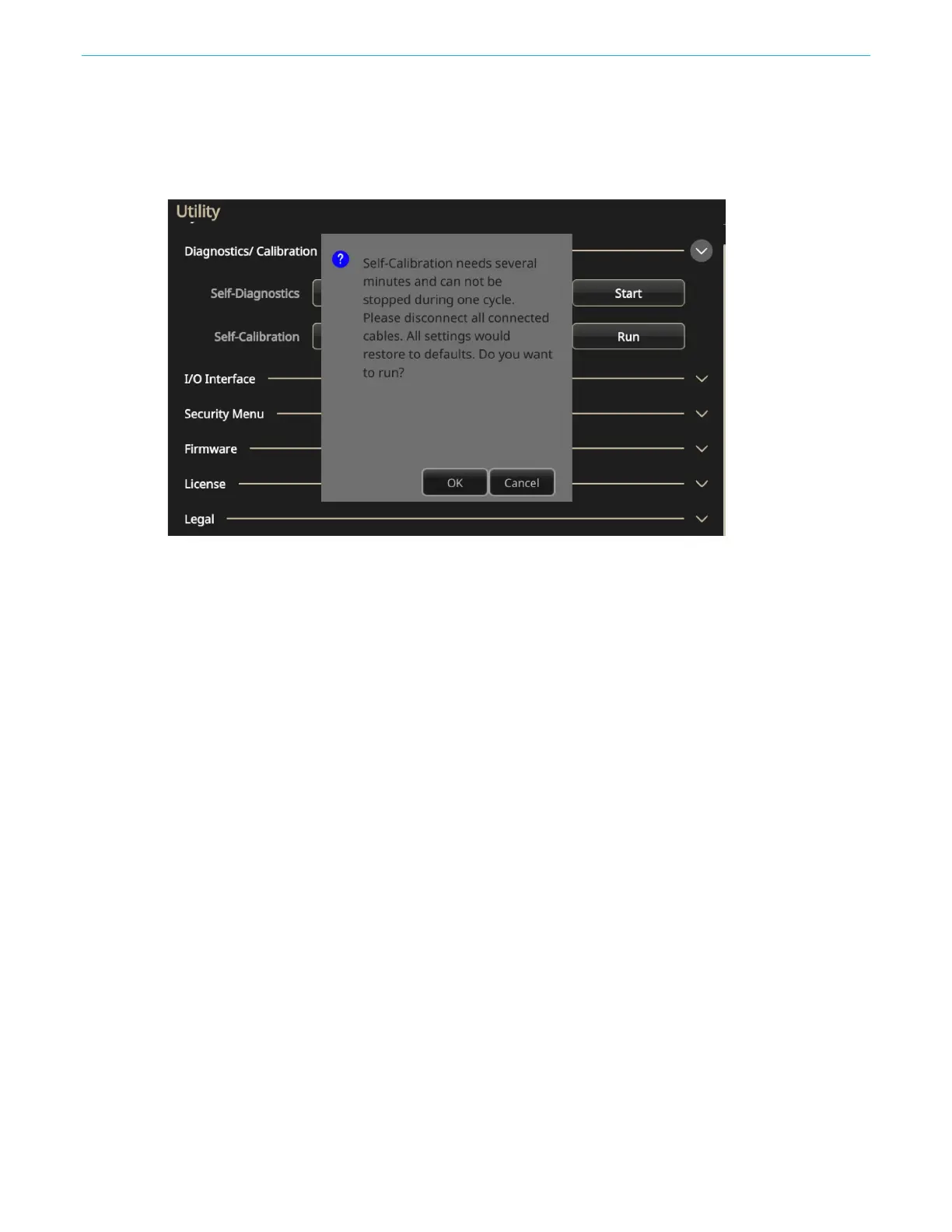

Figure 46: Run self-calibration
8. Wait until the test is completed. The diagnostics test takes eight minutes to complete.
9. Once calibration or diagnostics is executed, a dialog box displays the results including any errors.
