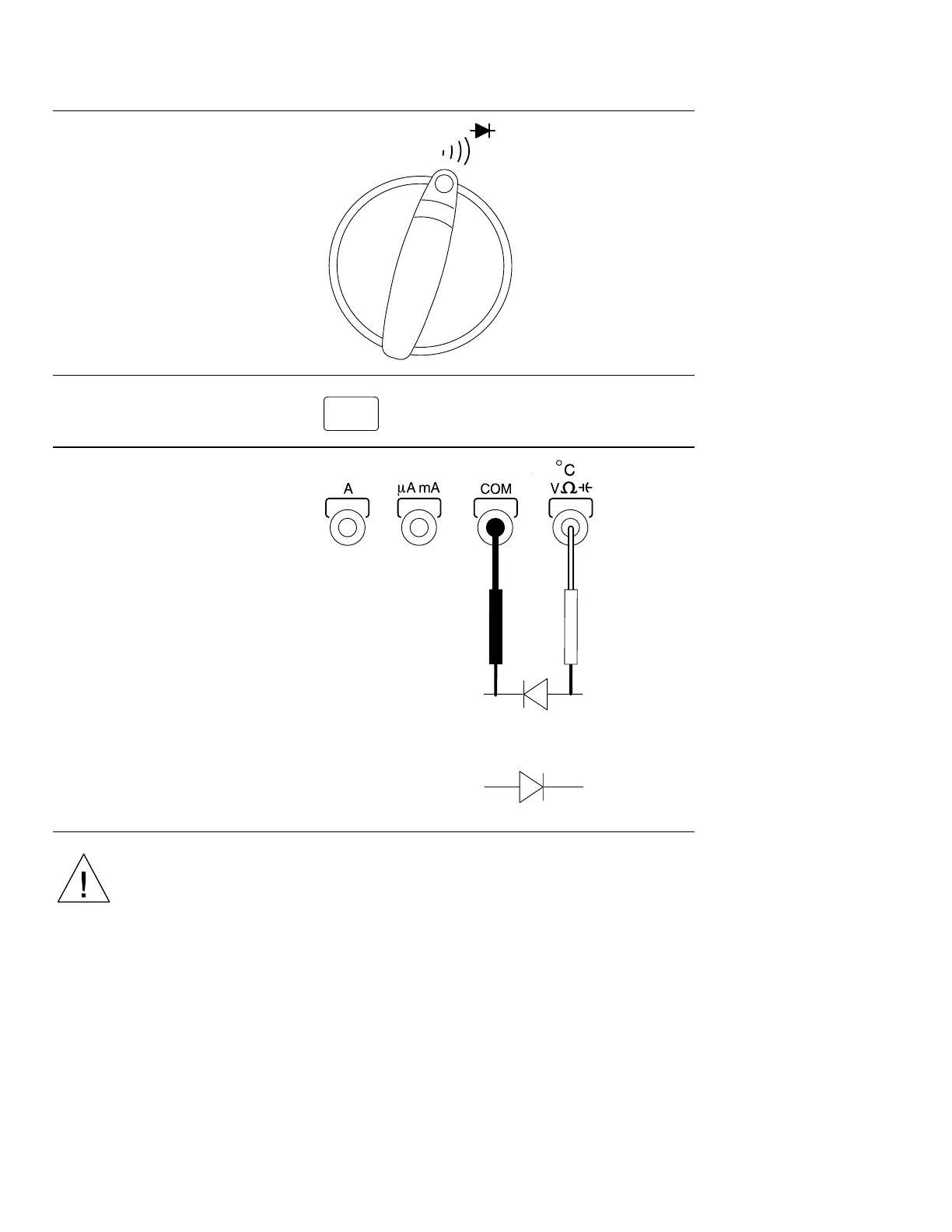

Diode testing
1. Set dial.
2. Choose diode
test.
Blue button
3. Connect leads.
Forward bias
Good = 0.4 to 0.9 V
Bad = 0 or OL
Reverse bias
Good = OL
Bad = <2.0 V
Forward bias
Reverse bias
CAUTION. Remove all power from the circuit
before connecting the test leads.
Remove individual components from circuitry for best
results.
