Getting Acquainted with the Oscilloscope

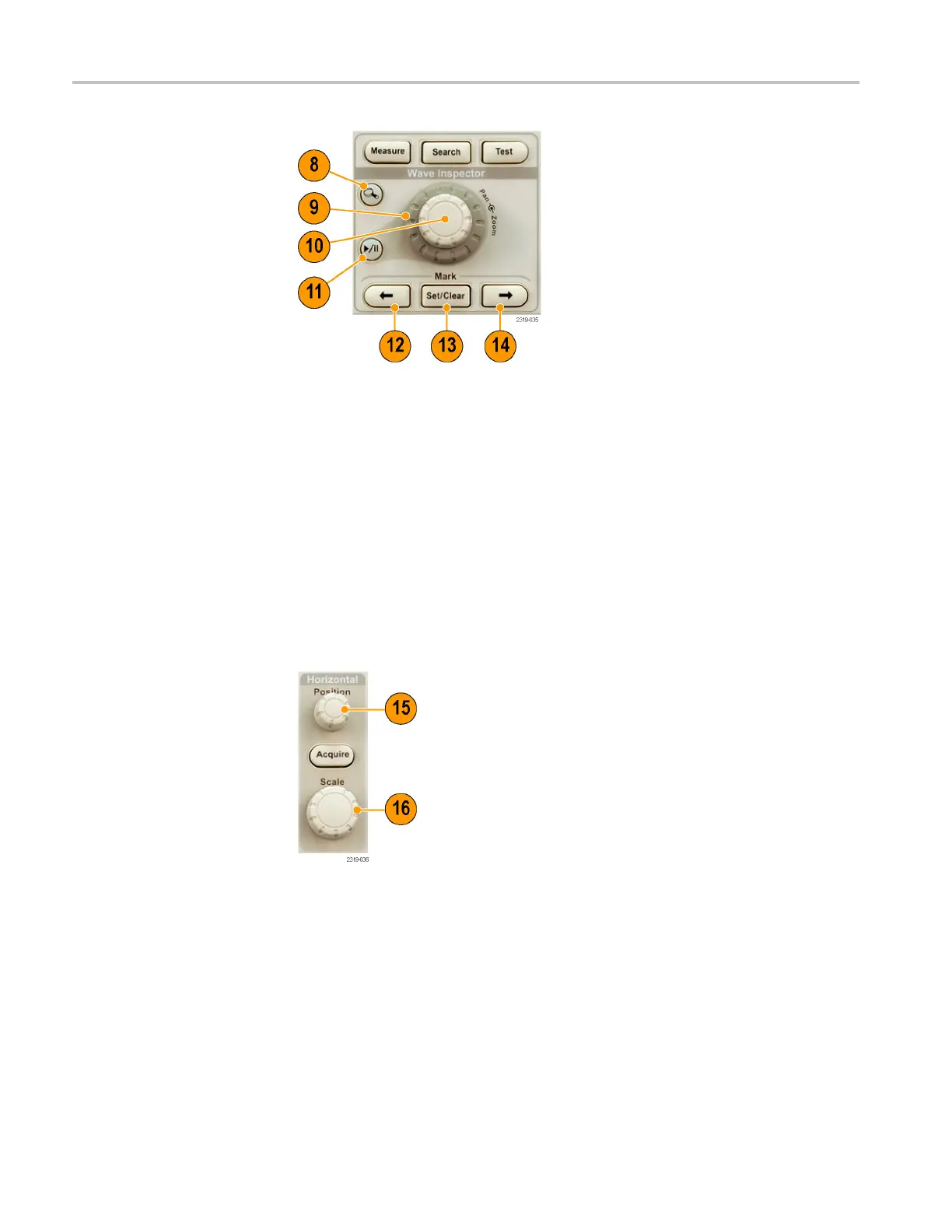

8. Zoom button. Push to activate zoom mode.
9. Pan (outer knob). Turn to scroll the zoom window through the acquired
waveform.
10. Zoom (inner knob). Turn to control the zoom factor. Turning it clockwise
zooms in further. Turning it counterclockwise zooms out.
11. Play-pause button. Push to start or s top the automatic panning of a
waveform. Control the speed and direction with the pan knob.
12. ← Prev. Push to jump to the previous waveform mark.
13. Set/C
lear Mark. Push to establish or delete a waveform mark.
14. → Next. Push to jump to the next waveform mark.
15. Horizontal Position. Turn to adjust the trigger point location relative to the
acquired waveforms. Push Fine to make smaller adjustments.
16. Horizontal Scale. Turn to adjust the horizontal scale (time/division).
28 MSO2000B and DPO2000B Installation and Safety Instructions
