Analyze Wavefor
mData
5. View results.
Snapshot on 1
Period
+Width
Burst W
Rise
+Duty
+Over
High
Max
Ampl
Mean
RMS
Area
+Edges
+Pulses
: 312.2s
: 103.7s
: 936.5s
: 1.452s
: 33.23%
: 7.143%
: 9.200 V
: 10.40 V
: 16.80 V
: - 5.396 V
: 7.769 V
: -21.58mVs
:7
:6
Freq
–Width
Fall
–Duty
–Over
Low
Min
Pk-Pk
CycleMean
CycleRMS
CycleArea
–Edges
–Pulses
: 3.203kHz
: 208.5s
:1.144s
: 66.77 %
:7.143%
: -7.600 V
: -8.800 V
: 19.20 V
: -5.396 V
:8.206V
: - 654.6Vs
:7
:6

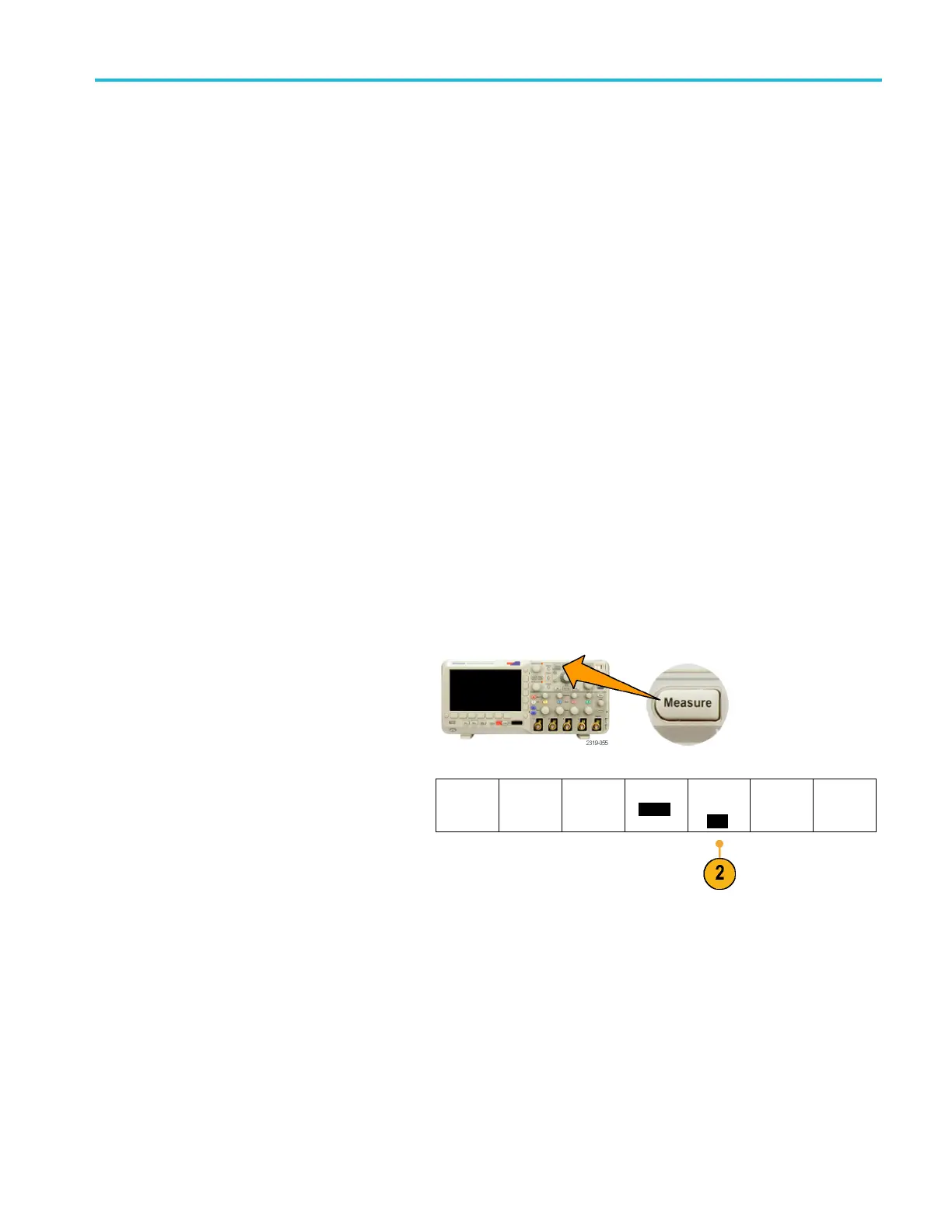

High and L ow Levels
The High-Low Method determines the high (100%) and the low (0%) values of the w aveform or gated region. For descriptions
of how measurements use the high and low levels, refer to Selecting Automatic Measurements. (See page 90.)
1. Push Measure.
2. Push H
igh-Low Method.
Add Me
a-
surement
Remov
e
Measure-
ment
Indic
ators
Gating
Scre
en
High-
Low
Method
Auto
Bring
Cursors
On Screen
Configure
Curso
rs
MSO2000B and DPO2000B Series Oscilloscopes User Manual 95
