Save and Recall I
nformation
2. Push R1 or R2.
(R1) |(On) (R2) |(Off)

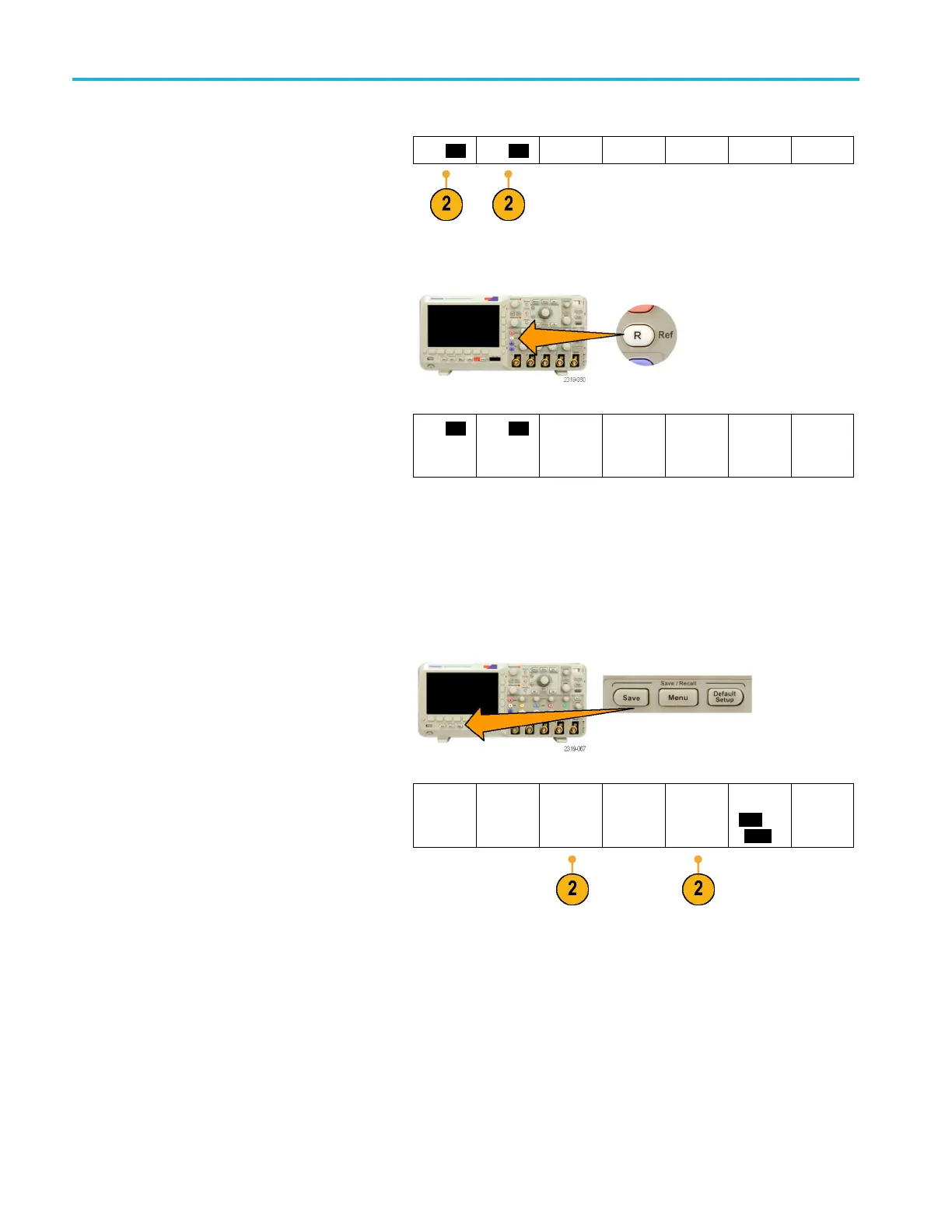

Removing a Reference Waveform from the Display. To remove a reference waveform from the display:
1. Push Ref R.
2. Push the R1 or R2 lower-bezel button to
remove the reference waveform from the
display.
(R1) |(On) (R2) |(Off)
The reference waveform is still in nonvolatile
memory an
d can be displayed again.
Saving a
nd Recalling Setups
Setup information includes acquisition information, such as vertical, horizontal, trigger, cursor, and measurement information.
It does not include communications information, such as GP IB addresses. To save the setup information:
1. Push Save / Recall M enu.
2. Push Save Setup or Recall S etup from the
lower-bezel menu.
Save
Screen
Save
Waveform
Save
Setup
Recall
Waveform
Recall
Setup
Assign
Save|to
Setup
File
Utilities
116 MSO2000B and DPO2000B Series O scilloscopes User Manual
