Acquire the Signal

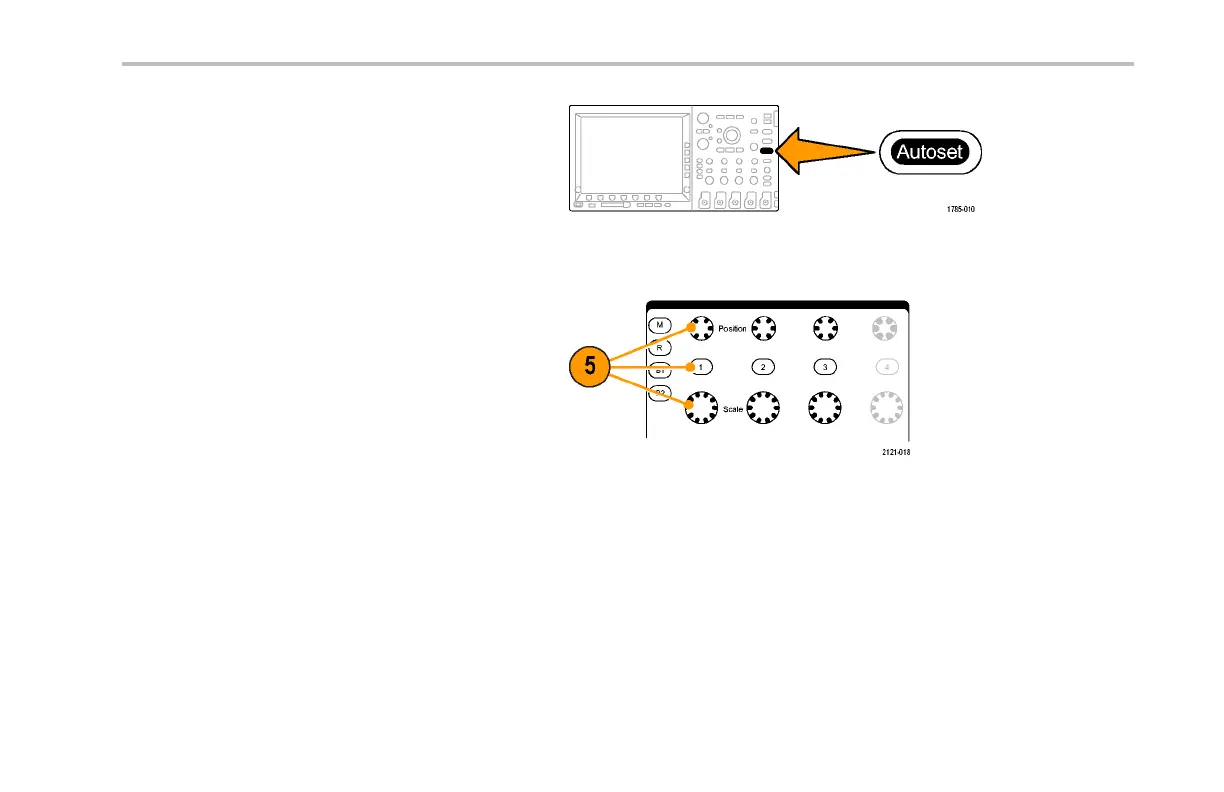

4. Push Autoset.
5. Push the desired channel b utton. Then
adjust the vertical position and scale.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 83
