Trigger Setup
Checking Trigger Settings
To quickly determine the settings of some key
trigger parameters, check the Trigger reado ut
at the bottom of the display. The readouts differ
for edge and the advanced triggers.
1. Trigger s ource = channel 1.
2. Trigger slope = r ising.
3. Trigger level = 0.00 V.

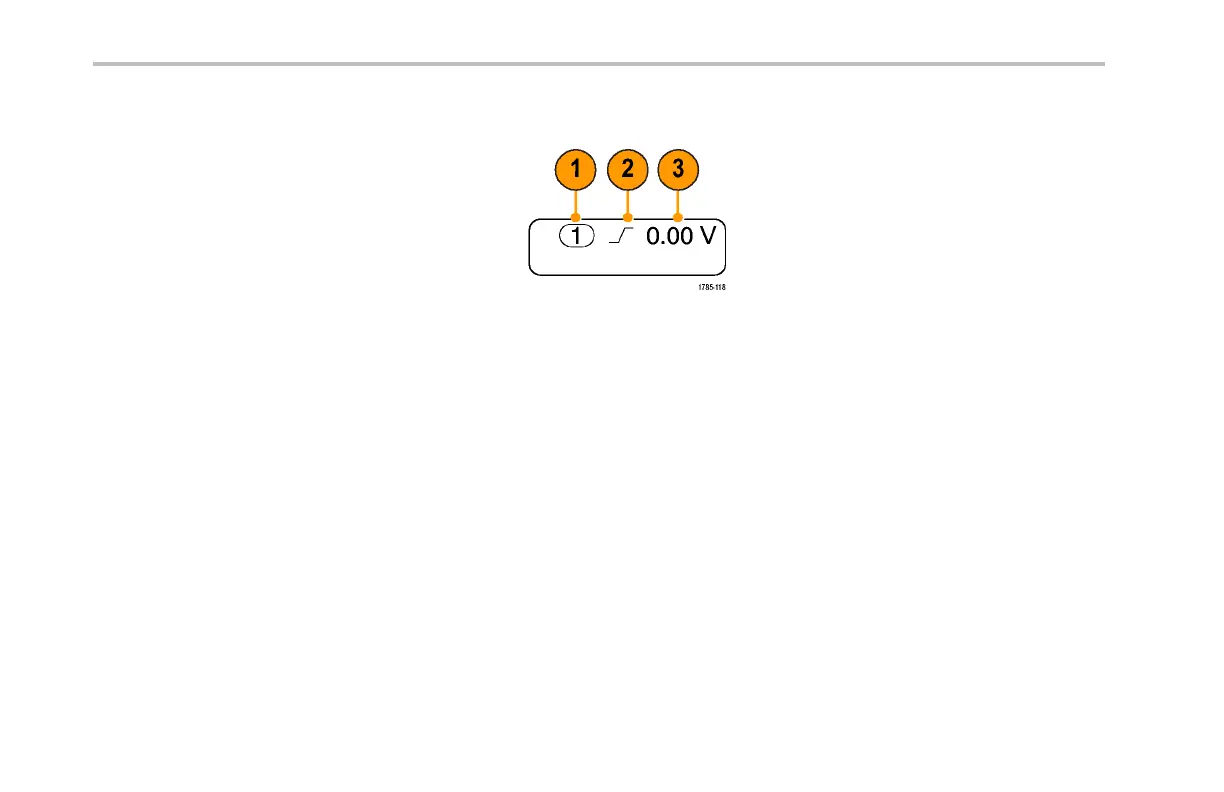

Edge trigger readout
156 MSO4000 and DPO4000 Series Oscilloscopes User Manual
