Acquire the Signal

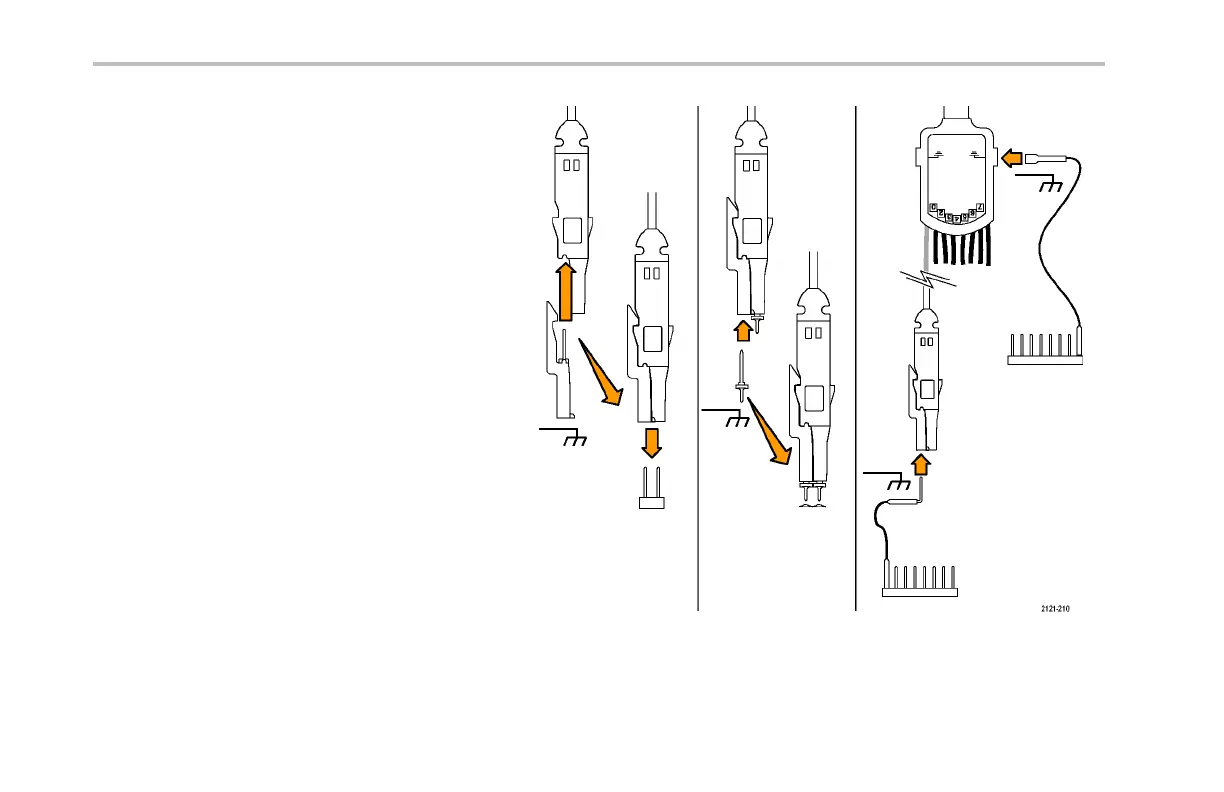

1. Connect the P6516 16-channel logic probe to
the input signal source.
124 MSO4000 and DPO4000 Series Oscilloscopes User Manual
