Get Acquainted with the Instrument
5. The trigger status readout shows trigger
status. Status conditions are:
Trig’d: Triggered
Auto: A cquiring untrigg ered data
PrTrig: Acquiring pretrigger data
Trig?: Waiting for trigger

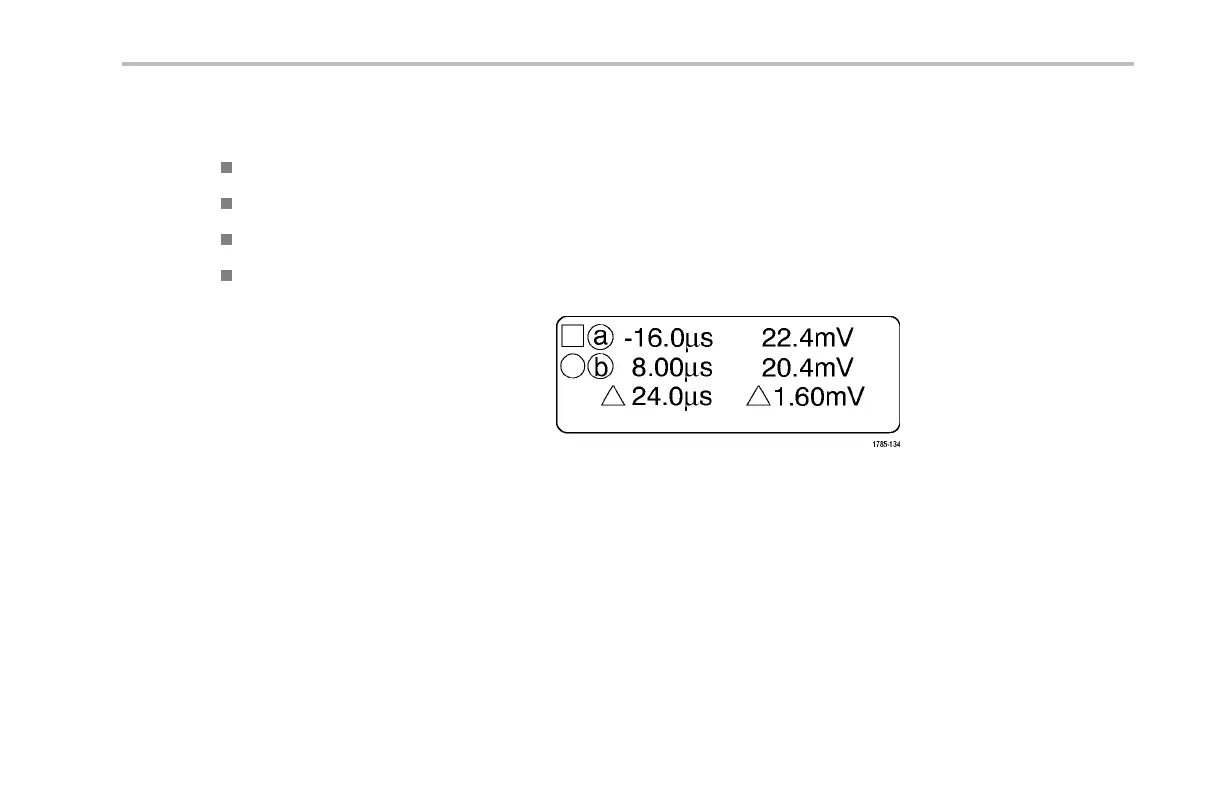

6. The cursor readout shows time, amplitude,
and delta (Δ) values for each cursor.
For FFT measurements, it shows frequency
and magnitude.
For serial buses, the readout shows t he
decoded values.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 71
