Saving and recal
ling information

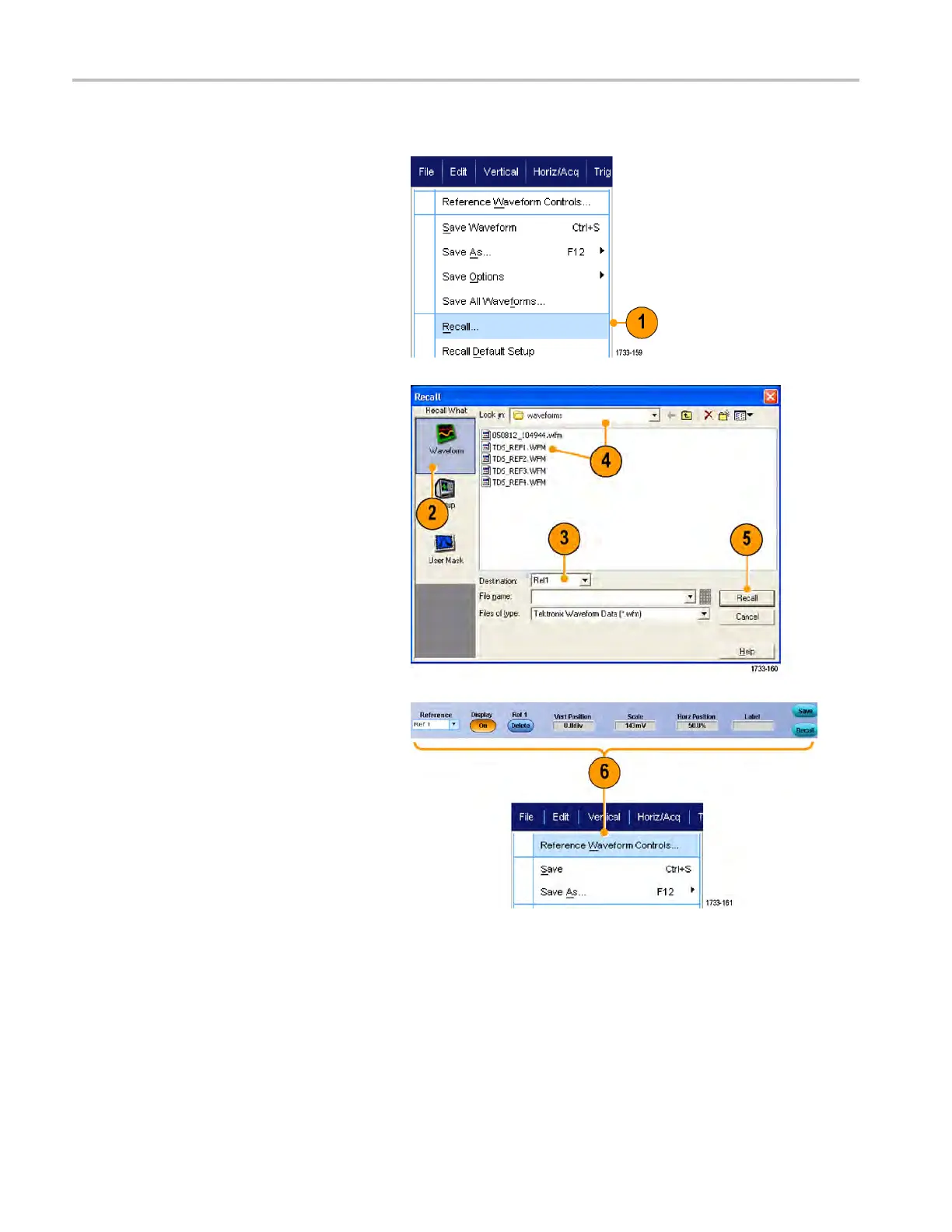

Recalling waveforms
1. Select File > R
ecall....
2. Click Waveform.
3. Select the Destination of the waveform
you are recalling.
4. Select the w aveform to recall.
5. Click Recall. C licking R e call turns on the
reference waveform and activates the
Reference Waveform control w indow.
6. Use the controls to adjust the Reference
waveform. You can also access the
Reference Waveform control window by
selecting File > Reference Waveform
Controls....
152 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
