To Next Page

To Previous Page

Saving and recal

ling information

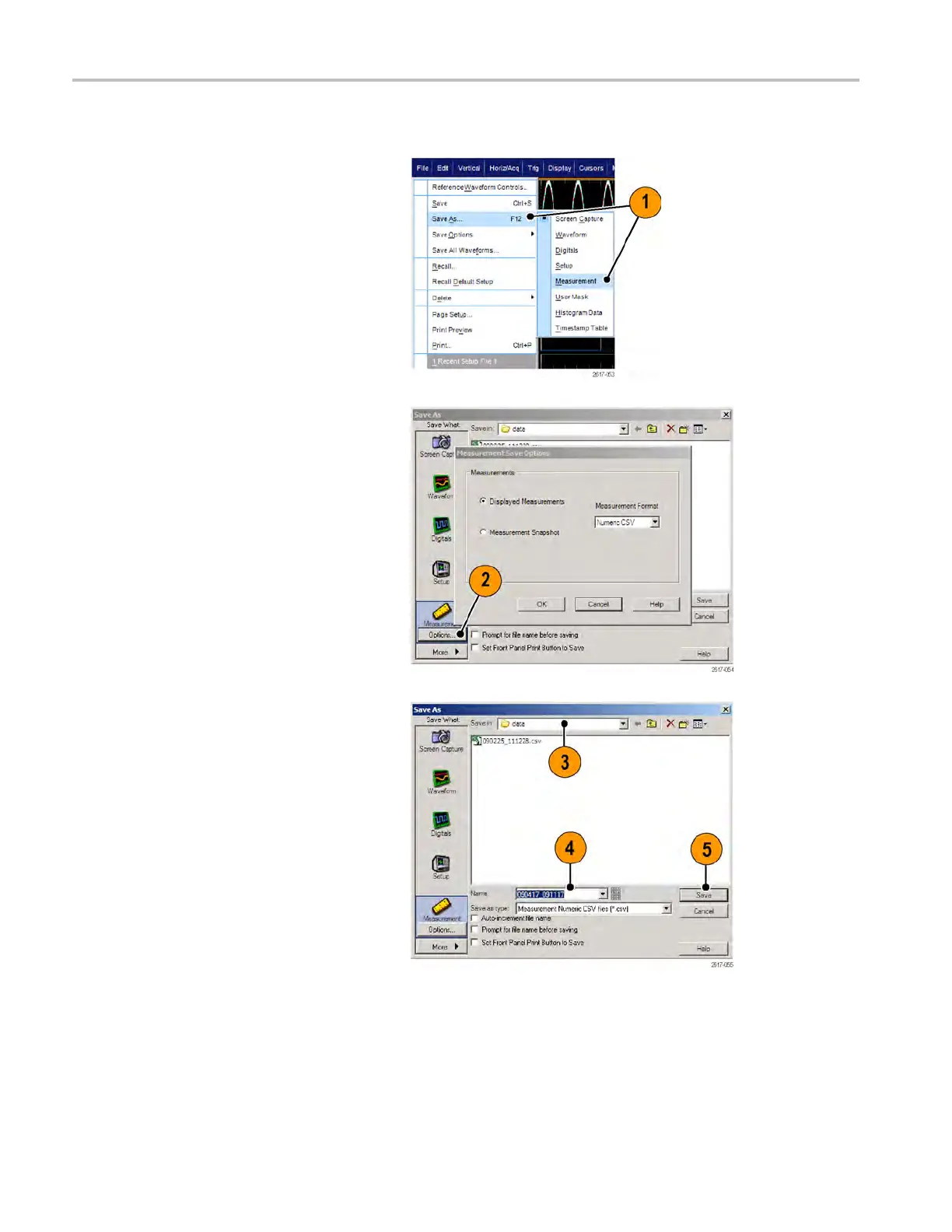

Saving measurements

1. Select File > S

ave or Save As >

Measurement....

2. Click Options... to specify D isplayed

Measurements, Measurement Snapshot,

or Measurement Format;otherwise,skip

to step 3.

3. Selectthelocationtosavethe

measu

rement.

4. Type i

n a name for the measurement,

and then select a ﬁle type.

5. Click Save.

156 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
