Getting acquain
ted with your instrument

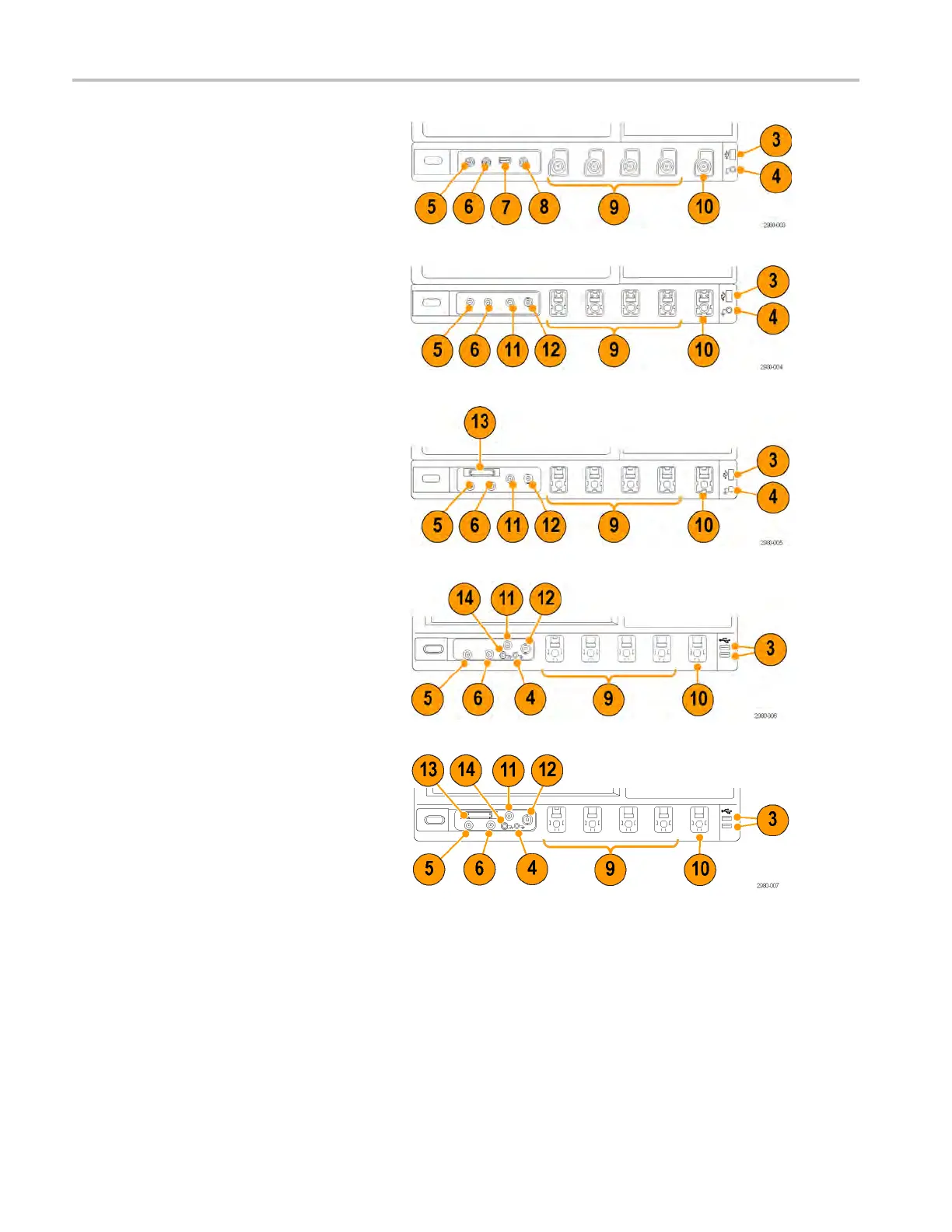

3. USB port
4. Ground terminal
5. Recovered data output (not available o n
DPO7104 and DPO7054)
6. Recovered clock output (not available on
DPO7104 and D
PO7054)
7. Probe compe
nsation output
8. Probe calib
ration output
9. Channel 1–4
input
10. Auxiliary
Trigger input
11. Fast Edge o
utput
12. DC Probe Ca
l output
13. Logic pro
be input
14. Ground te
rminalthrougha1MΩ resistor
DPO7000C Series
DPO70000C S
eries
MSO70000C Series
DPO70000DX Series
MSO70000DX Series
18 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
