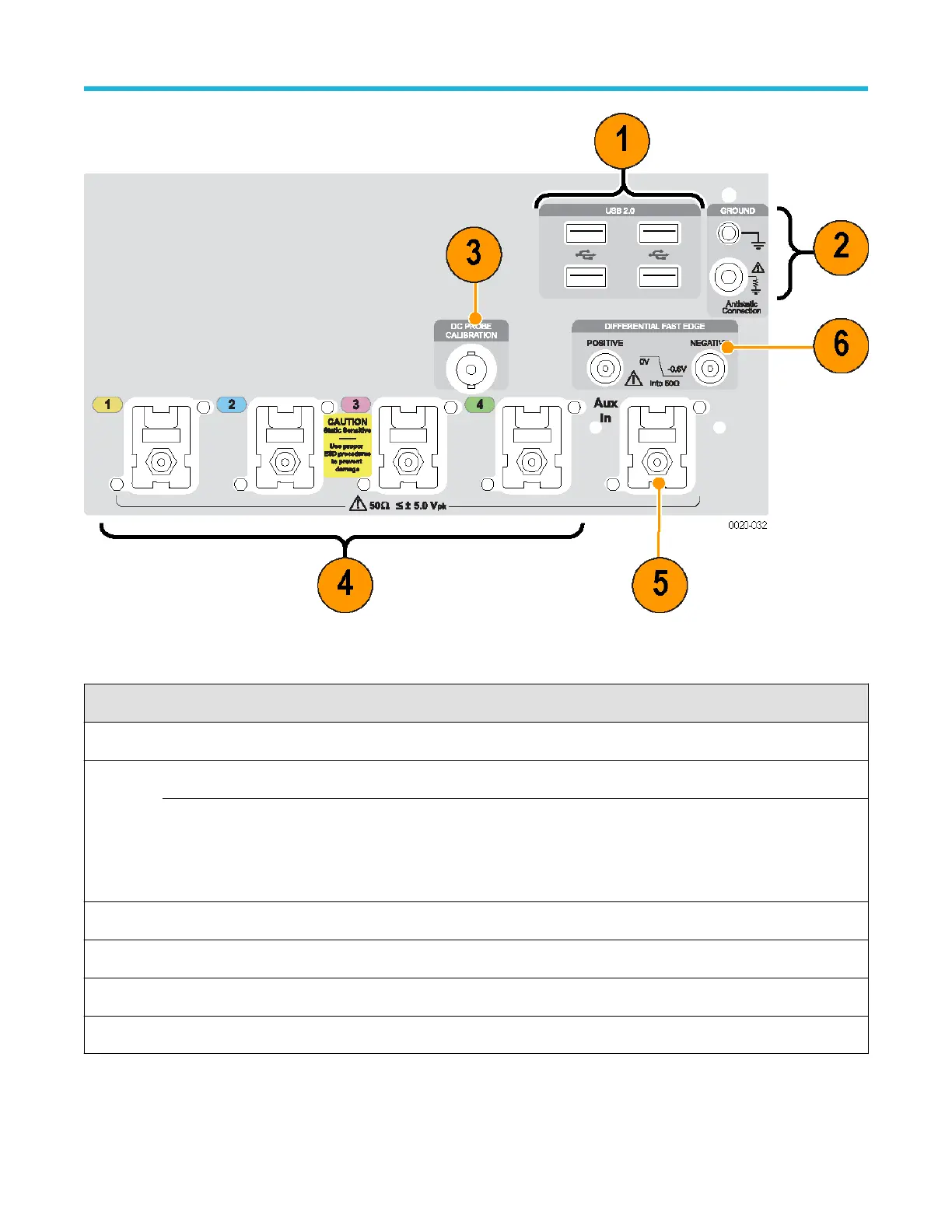

Figure 2: TekConnect channels
Table 1: Front-panel connectors
Identifier
Connector Description
1
USB 2.0 Four USB connectors.
2
Chassis ground Banana type ground connection.
Ground through 1 MΩ resistor
Banana type ground connection.
Discharge the static voltage from your body by wearing a grounded
antistatic wrist strap while connecting and disconnecting cables and
TekConnect adapters.
3
DC Probe Calibration Probe calibration output
4
1, 2, 3, and 4(Analog inputs) These connectors supply analog signals.
5
Aux In
Auxiliary trigger input
6
Differential Fast Edge Differential fast edge step output.
Front-panel connectors
11
