Analyzing wavef

orms

Annotate measurements

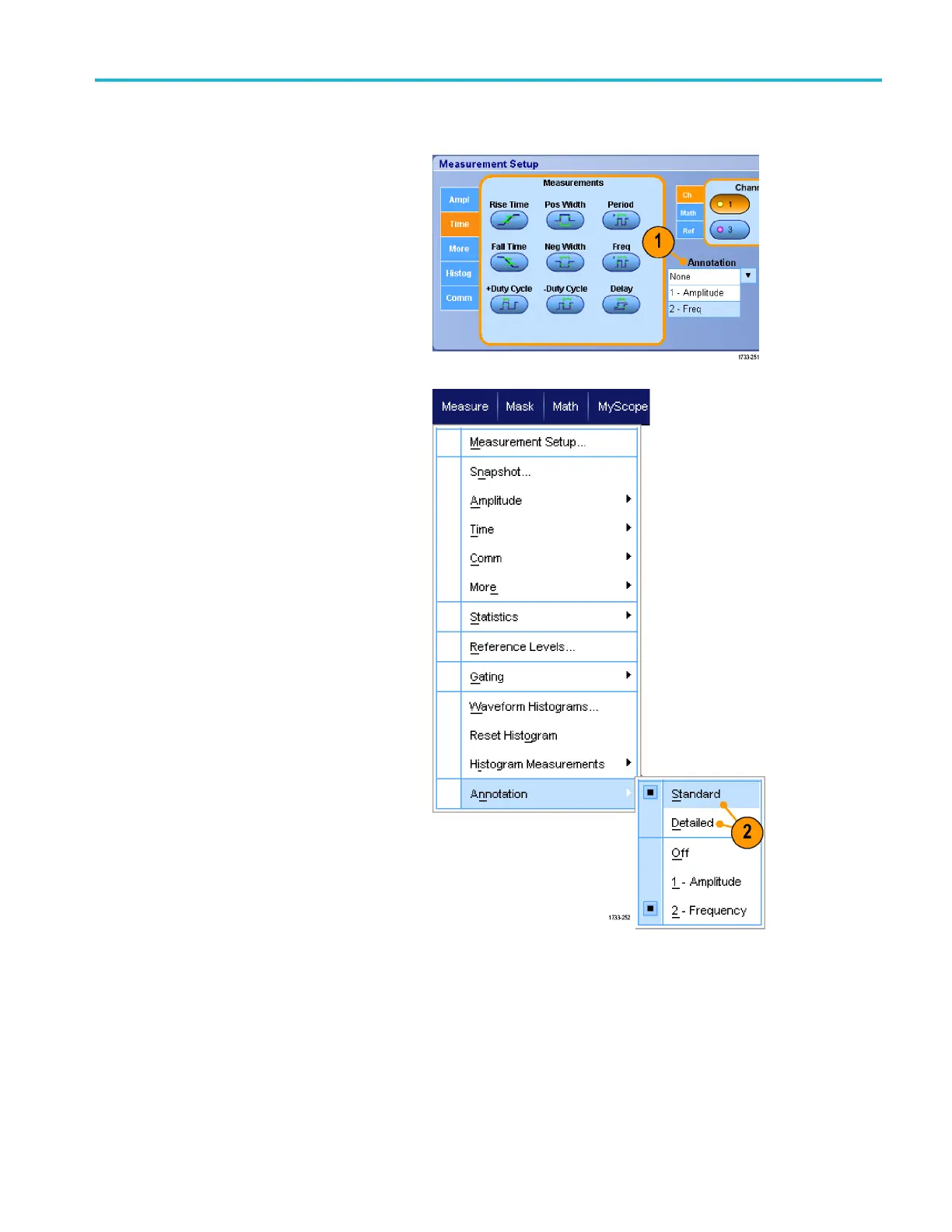

1. To annotate measurements, select

Annotation fr

om the Measurements

setup control window. From the drop

down list, select the measurement to

annotate.

2. To select the amount of measurement

annotation detail, select Measure >

Annotatio

n > Standard or Detailed.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 123
