Search for error

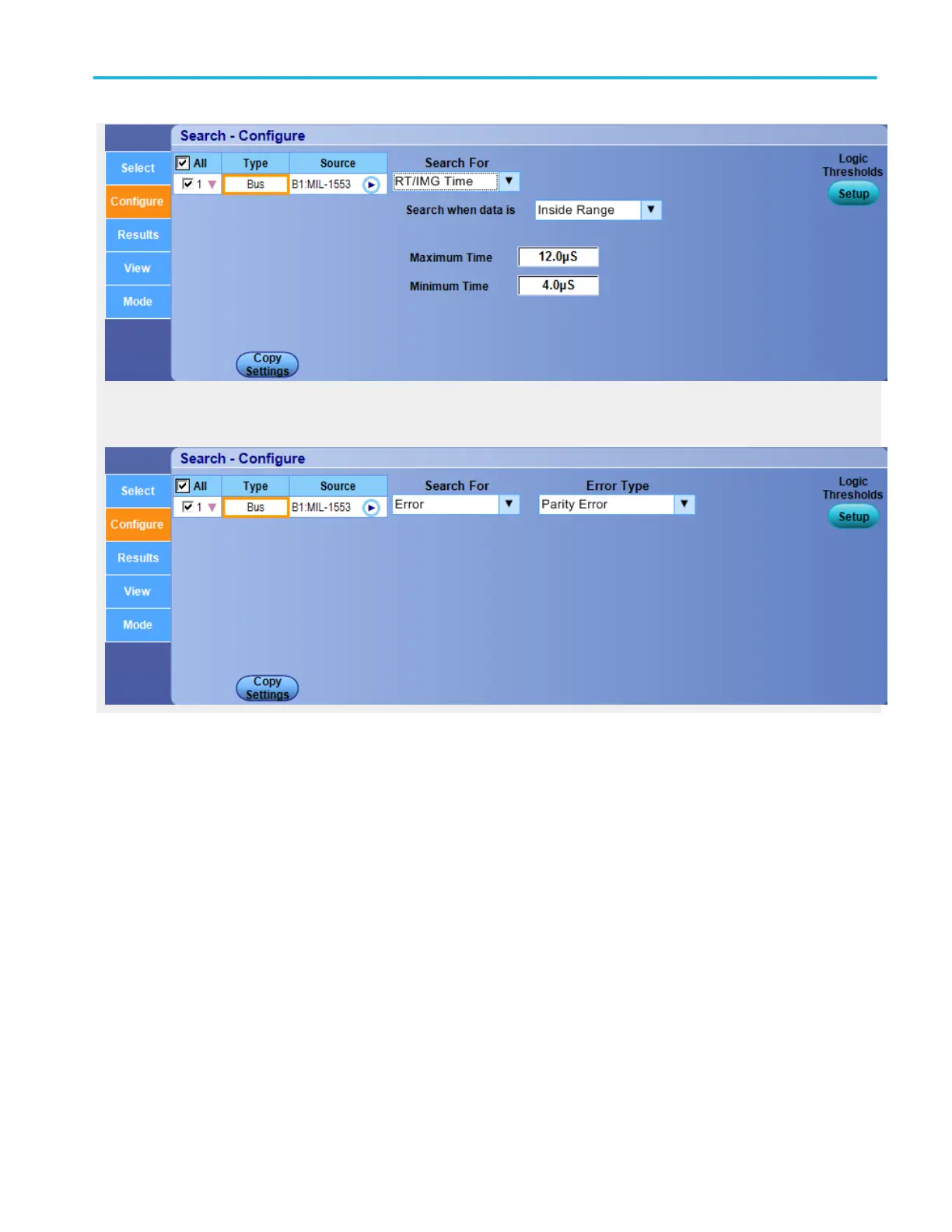

The data type option available in Search For Error is Error Type.

Set up ethernet search parameters

After setting up an Ethernet bus, go to the Analyze menu, select Search, and then select the Bus trigger type; then open the

Configure tab.

Overview

Use the controls to set up the Ethernet Bus parameters.

Analyzing waveforms
