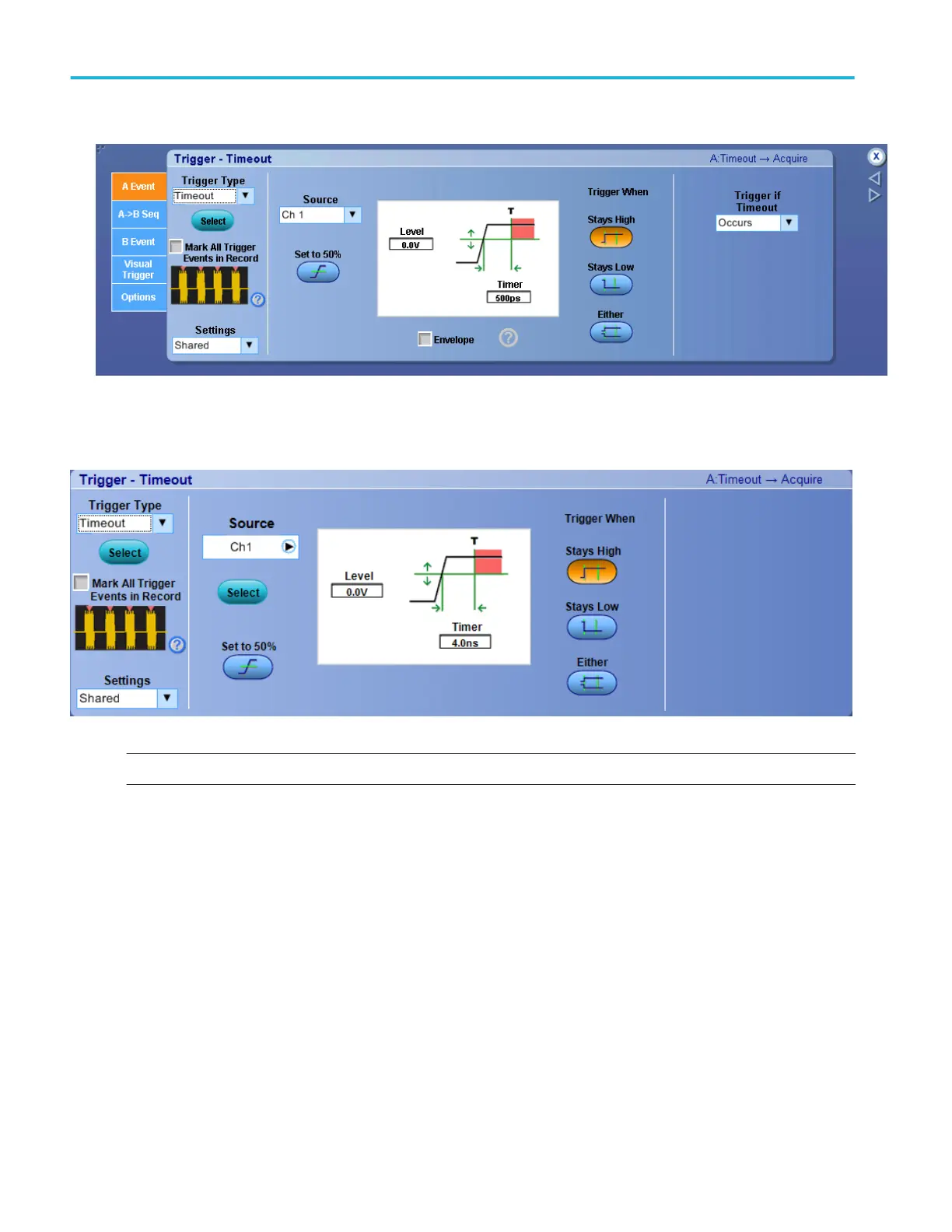

The following Trigger Timeout screen appears on MSO/DPO5000B Series instruments:

NOTE. The Logic qualification is not available on DPO5000B and .MSO5000B Series instruments.

Trigger setups

432 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
