Application exa

mples

Triggering on lines

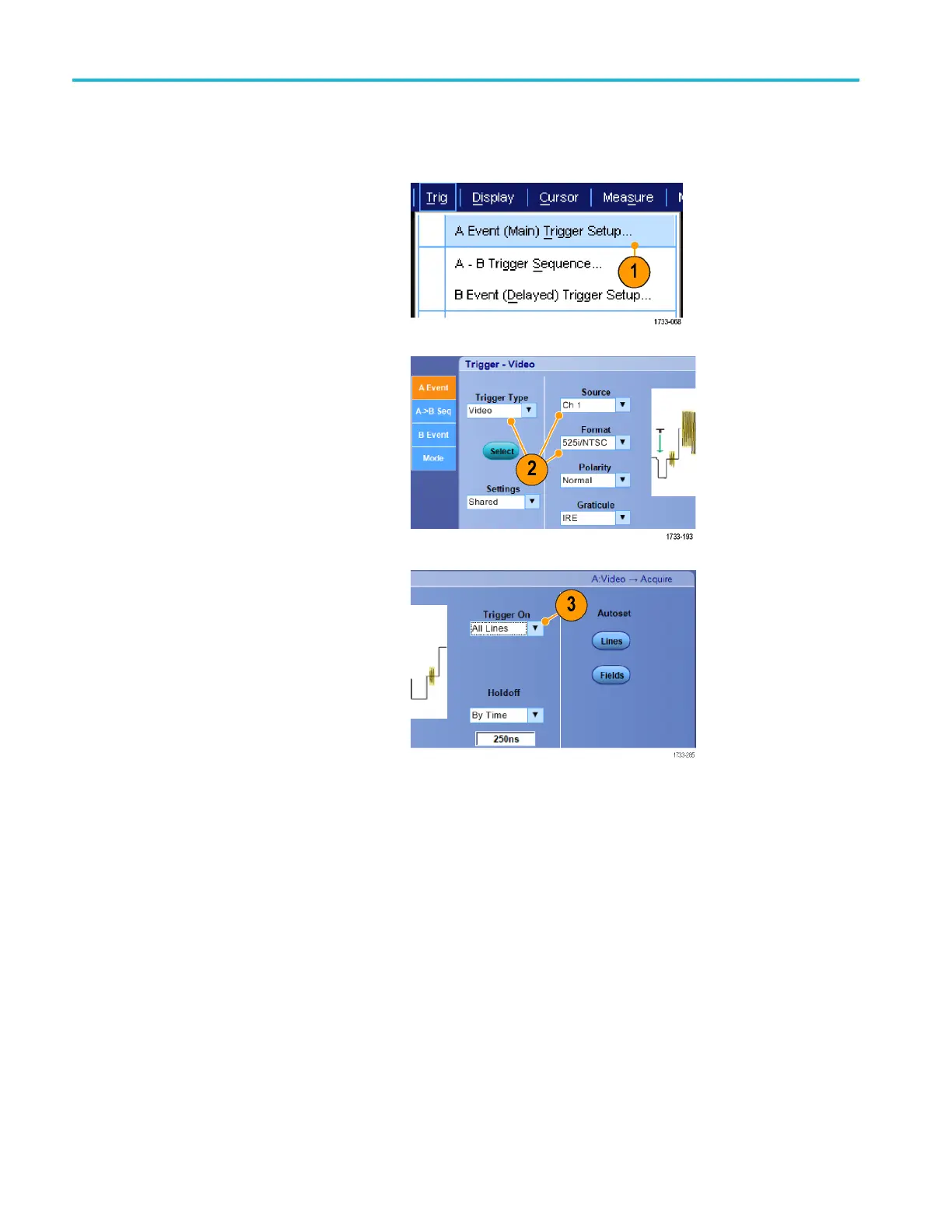

To look at the video lines in the ﬁeld:

1. Select Trig > A Event (Main) Trigger

Setup....

2. Set the A trigger type and source in the

AEventtab

Select Format > 525i/NTSC .

3. Select Trigger On > All Lines.

176 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
