Triggering on Lines

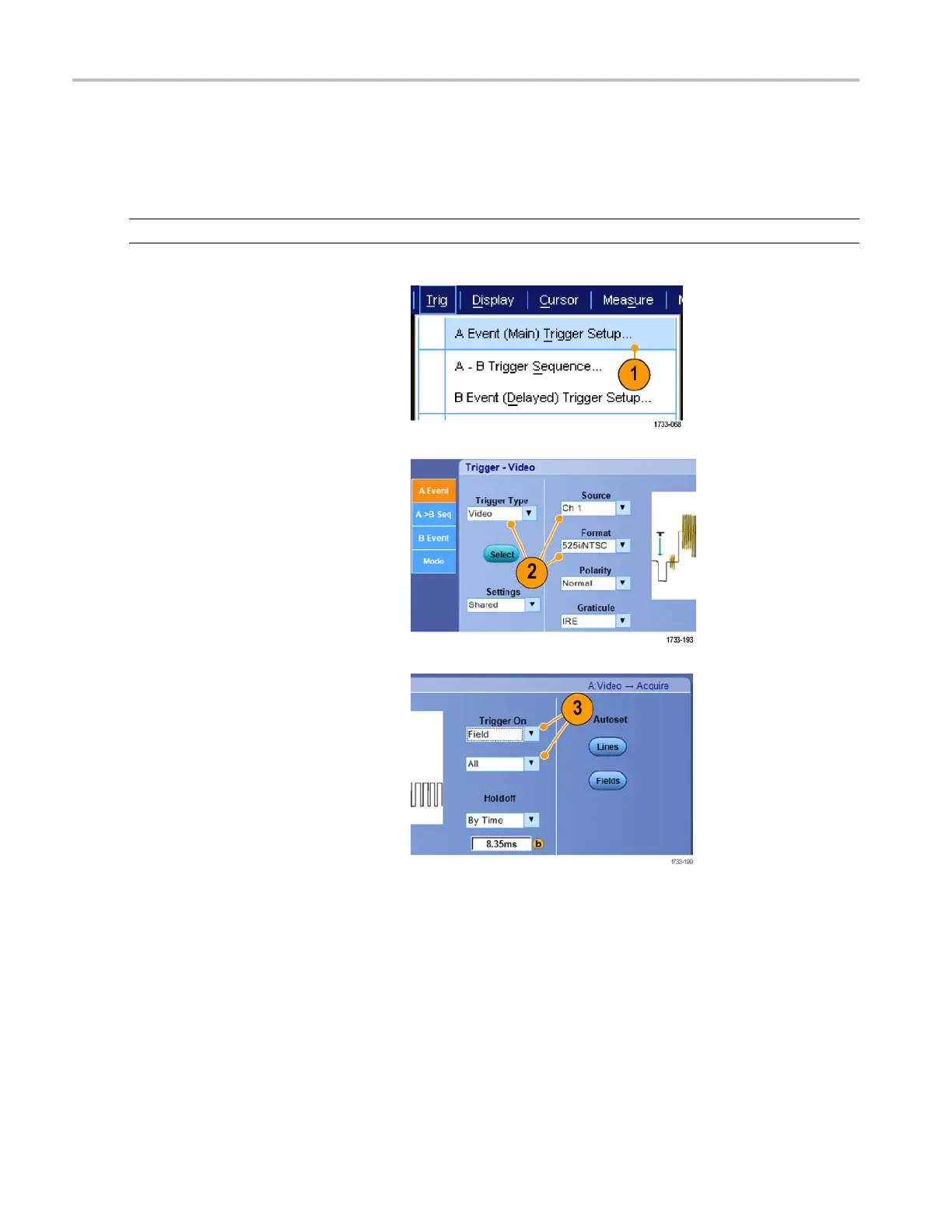

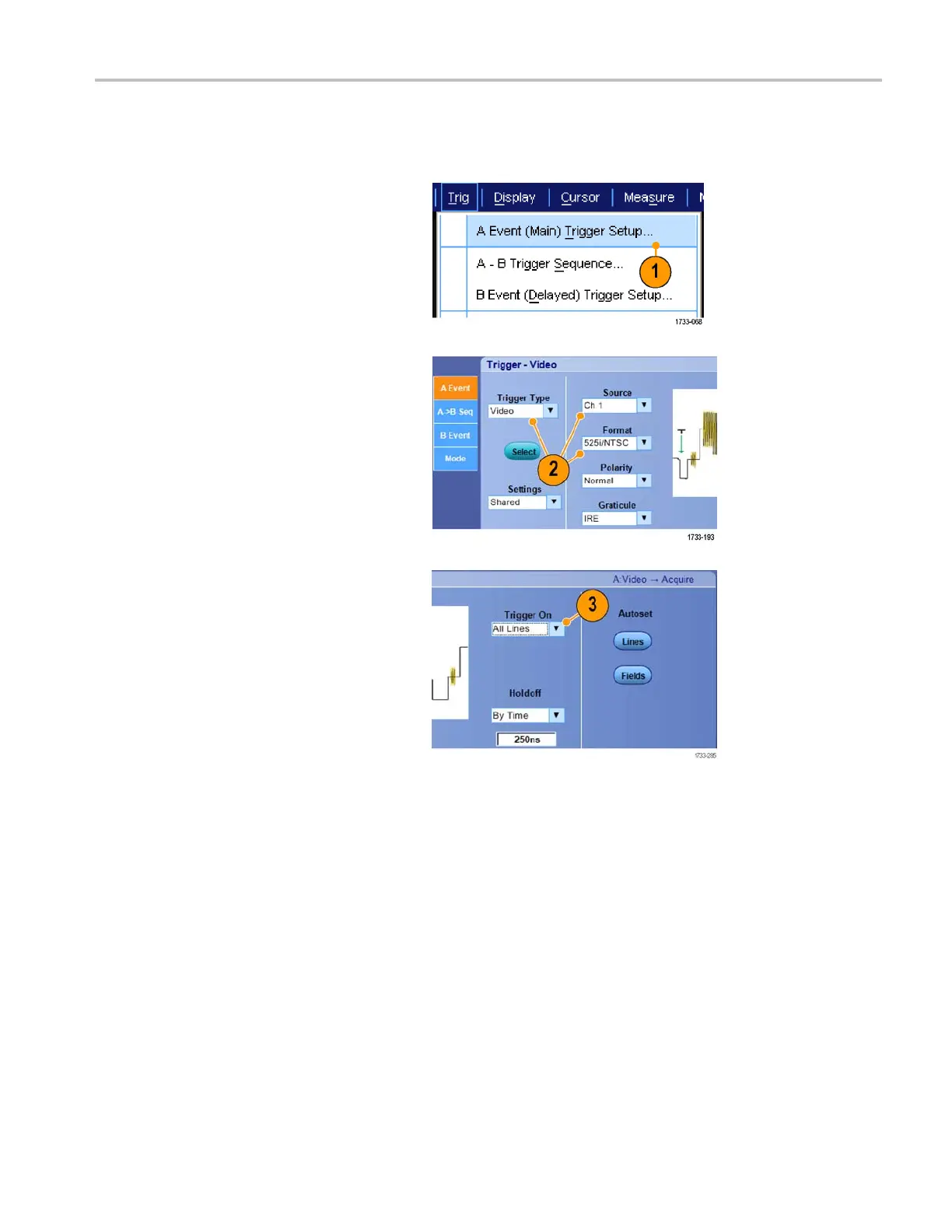

To look at the video lines in the field:
1. Select Trig > A Event (Main) Trigger
Setup....
2. Set the A trigger type and source in the
A Event tab
.
Select Format > 525i/NTSC.
3. Select Trigger On > A ll Lines.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 167
