Acquisition
Quick Tips
Digital channels and buses are not available in FastAcq mode.

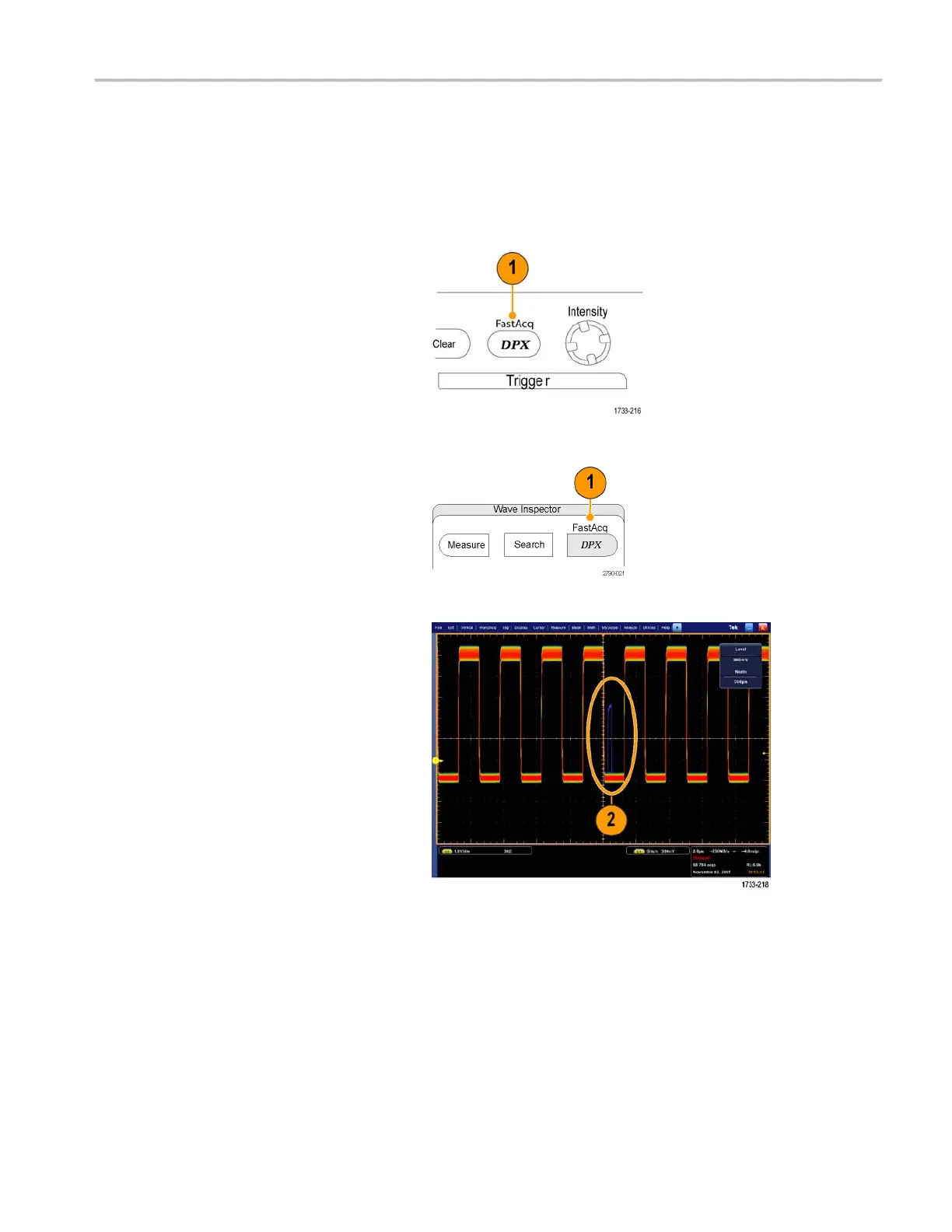

To optimize for capturing details or rare events, select Horiz/Acq > Horizontal/Acquisition Setup > Acquisition> Fast
Acq, and then select Optimize For Capturing Details or Capturing rare events.
On MSO5000 and DPO5000 Series instruments, Fast Ac q m ode is not available in XY or XYZ Display modes.
44 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
