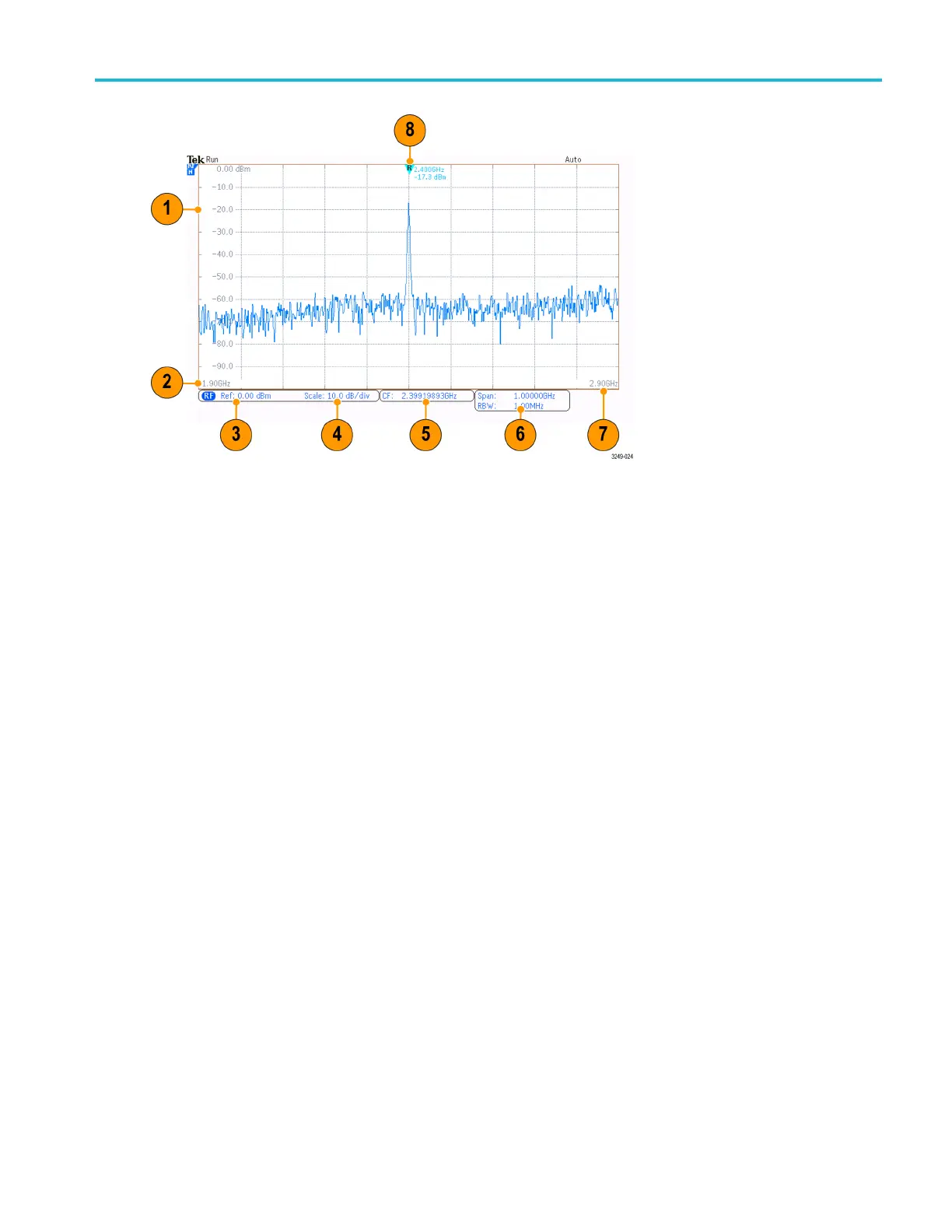

Tektronix MDO3034 - Identifying Items in the Frequency Domain Display

Get Acquainted w
ith the Instrument
1. Vertical graticule labels
2. S tart frequency
3. Reference level
4. Vertical scale
5. Center frequency
6. S pan and resolution bandwidth
7. S top frequency
8. Reference marker
