Get Acquainted w
ith the Instrument
5. Acquire. Push to set the acquisition mode and adjust the record length.
6. Trigger Menu. Push to specify trigger settings.
7. M. Push to manage the math waveform, including the display or removal of the math waveform from the display.
8. R. Push to manage reference waveforms, including the display or removal of each reference waveform from the display.
9. B1 or B2.Pushtodefine and display a serial bus if you have the appropriate application modules. Parallel bus support
is available
on MDO3000 products with the M DO3MSO option installed. Also, push the B1 or B2 button to display or
remove the corresponding bus from the display.
10. AFG. Push to enable the arbitrary function generator output and access the AFG menu.
11. Vertical Position. Turn to adjust the vertical position of the corresponding waveform. Push to center the waveform
baseline indicator.
12. Channel 1, 2, 3,or4Menu. Push to set vertical parameters for input waveforms and to display or remove the
correspon
ding waveform from the display.
13. Vertical S
cale. Turn to adjust the vertical scale factor of the corresponding waveform (volts/division). Push the
front-panel Fine button to make smaller adjustments.

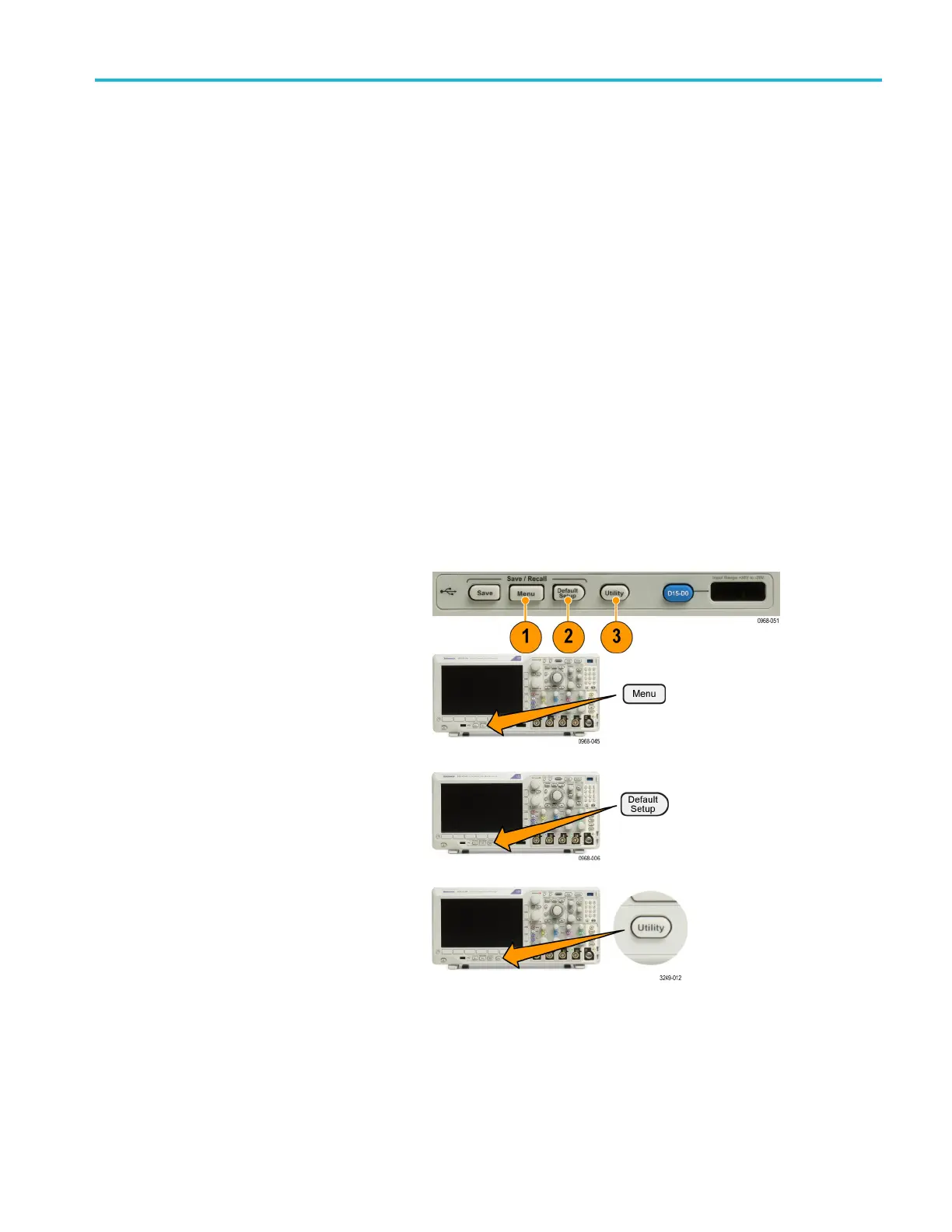

Below the display buttons
Use the buttons below the display to perform many functions in the oscilloscope.
1. Save / Re
call Menu.Pushtodefine the
Save button to save and recall setups,
waveforms, or screen images to internal
memory,
aUSBflash drive, or a mounted
network drive.
2. Default Setup. Push to perform an
immed
iate restore of the oscilloscope to
the default settings.
3. Utility. Push to activate the system utility
functions, such as selecting a language
or setting the date/time.
MDO3000 Series Oscilloscopes User Manual 39
