Trigger Setup

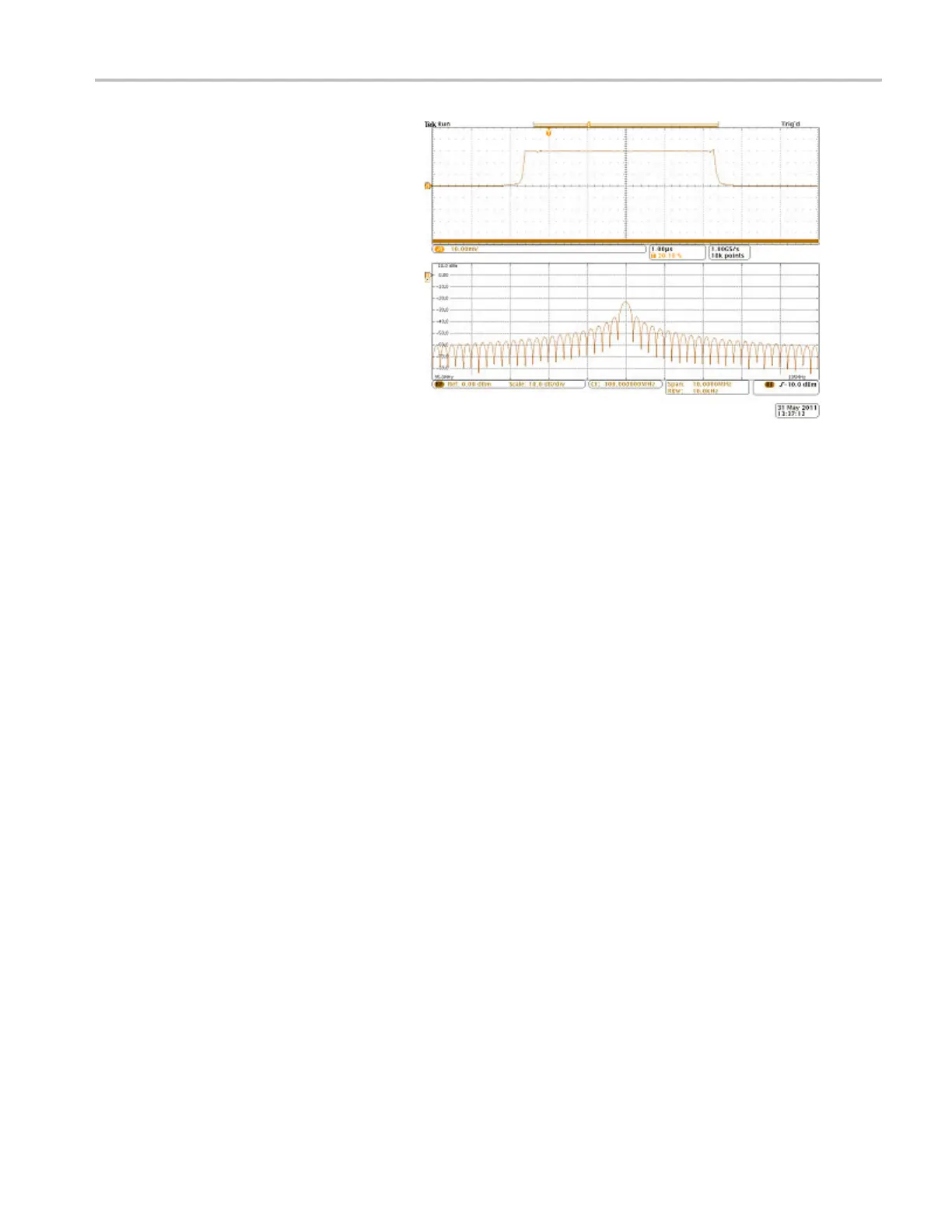

In the figure to the right, the edge trigger
power level is now raised to -10 dBm.
The trigger in
dication is now delayed
approximately 500 ns from the start of the
burst. This is due to the power detector
response dis
cussed previously.
MDO4000 Series Oscilloscopes User Manual 95
