Tektronix MDO4054-3 User Manual

Display Wavefor
morTraceData

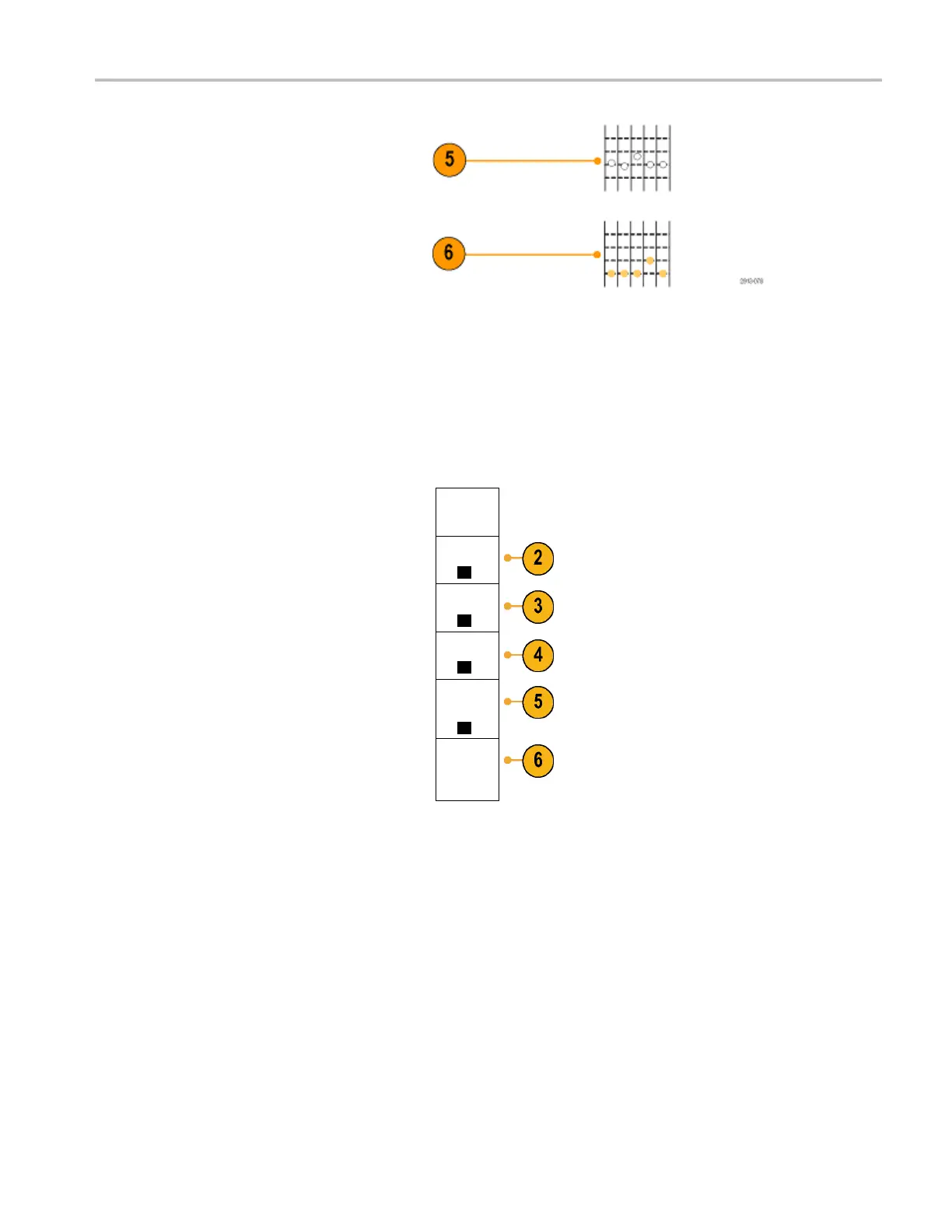

5. Average: Avera
ges all points in each
interval.
6. -Peak: Uses the lowest amplitude point
in each interval.
RF Time Doma
in Traces
The time domain window can also display three RF time domain traces, in addition to the usual analog and digital
waveforms. You may turn each of these traces on or off independently, and display all or some of them simultaneously.
To use these traces:
1. Push RF Versus Time Traces from the RF
Menu to bring up the related side menu.
RF Versus
Time
Traces
2. Set Amplitude to On to display the
amplitude versus time trace.
Amplitude
On|
Off
3. Set Frequency to On to display the
frequency versus time trace.
Frequency
On|
Off
4. Set Phase to On to display the phase versus
time trace.
Phase
On|
Off
5. Set Freq/Phase Squelch to On to use the
squelch feature.
Freq/Phase
Squelch
On|
Off
6. Push Squelch Threshold and rotate
multipurpose knob a to set the threshold for
the squelch feature.
Squelch
Threshold
(a)22.3 μV
The trace options are:
MDO4000 Series Oscilloscopes User Manual 113
