Giving Demos of A dvanced Oscillosco pe Features

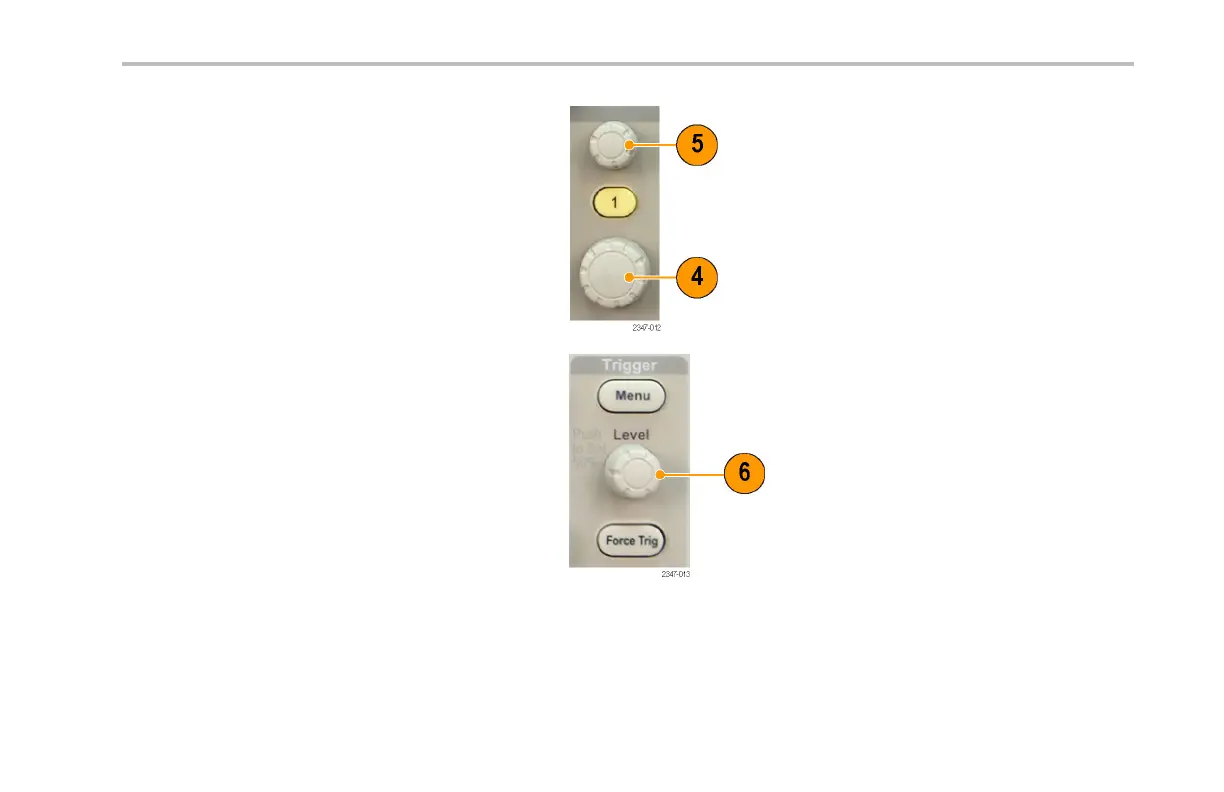

4. Turn the vertical Scale knob to 500 mV/div.
5. Adjust th e vertical Position knob to cente r the
waveform on the screen.
6. Turn the Trigger Level knob to 1.3 V.
Demo 2 Board Instruction Manua l 73
