Giving Demos of A dvanced Oscillosco pe Features
5. Zoom in and out to illustrate how the center kno b works. End in a spot where you are zoomed in on a single burst of clocks.
Notice t hat you do not have to turn a horizontal position control many times to move the zoom window t o the beginning of the
acquisition, nor do you have to zoom way back out so you could move the window quickly, and then zoom back in when you
arrived at the new location. T his is where the pan function helps.

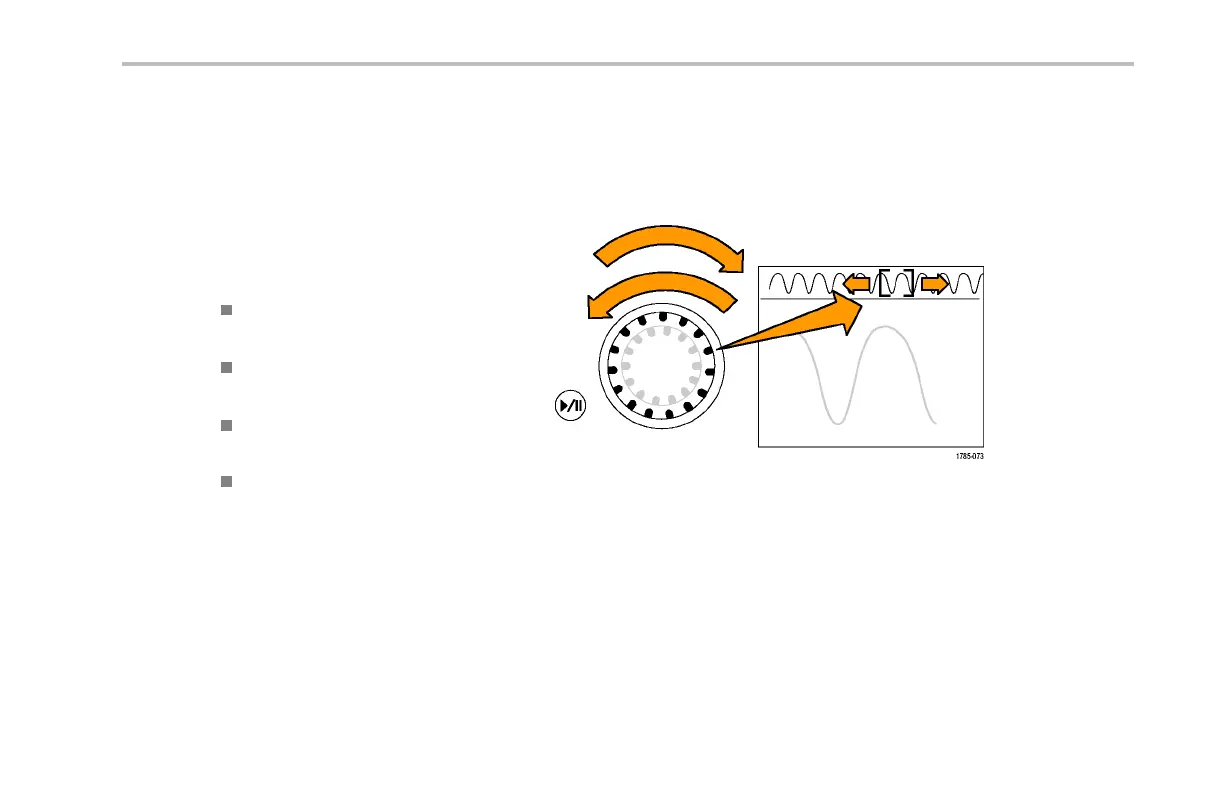

6. Turn the pan (outer) knob counterclockwise
a bit. Notice the extremely intuitive nature
of the zoom/pan controls.
Counterclockwise turning moves the
zoom box left.
Clockwise turning move s the zoom box
right.
The further you turn the pan knob, the
faster the zoom box moves.
You can move from one end of the
acquisition to the other end in a
couple of seconds even with the
MSO/DPO4000’s 10 M record length!
Demo 2 Board Instruction Manua l 33
