Giving Demos of MSO Features

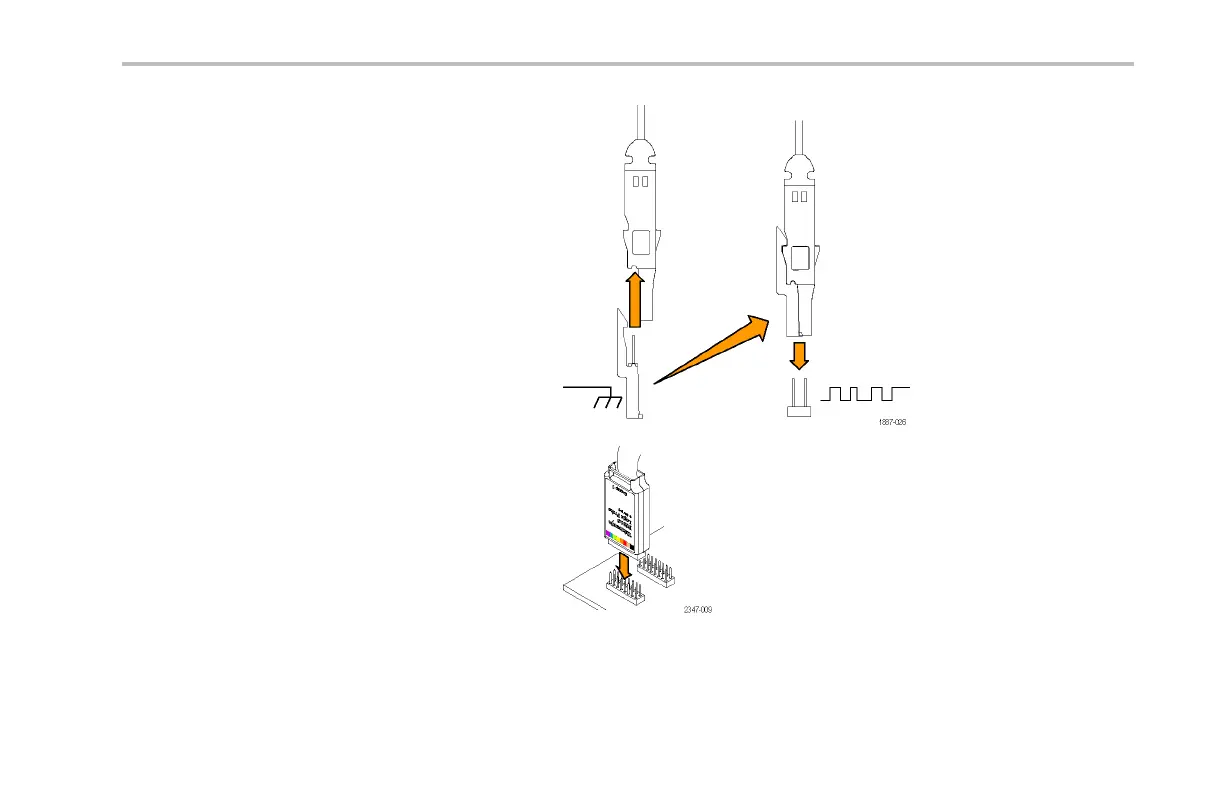

For the MSO4000 and the P6516 digital probe,
remember to properly g round each probe pin
using the flush mount adapter.
For the MSO2000/MSO3000 and the P6316,
simply plug the 16-connector pod into the
corresponding 16-pin array on the Demo 2
board. Be sure to line up the eight ground pins
on the pod with the corresponding row of eight
ground pins on the board.
Demo 2 Board Instruction Manua l 83
