Tektronix MSO2014 User Manual

Display Waveform Data
Positioning and Labeling Bus Signals
After you set up a serial or parallel bus, you can position and label the b us signals. (See page 92, Sett ing Up a Serial or Parallel Bus.)
To position bus signals, follow these steps:

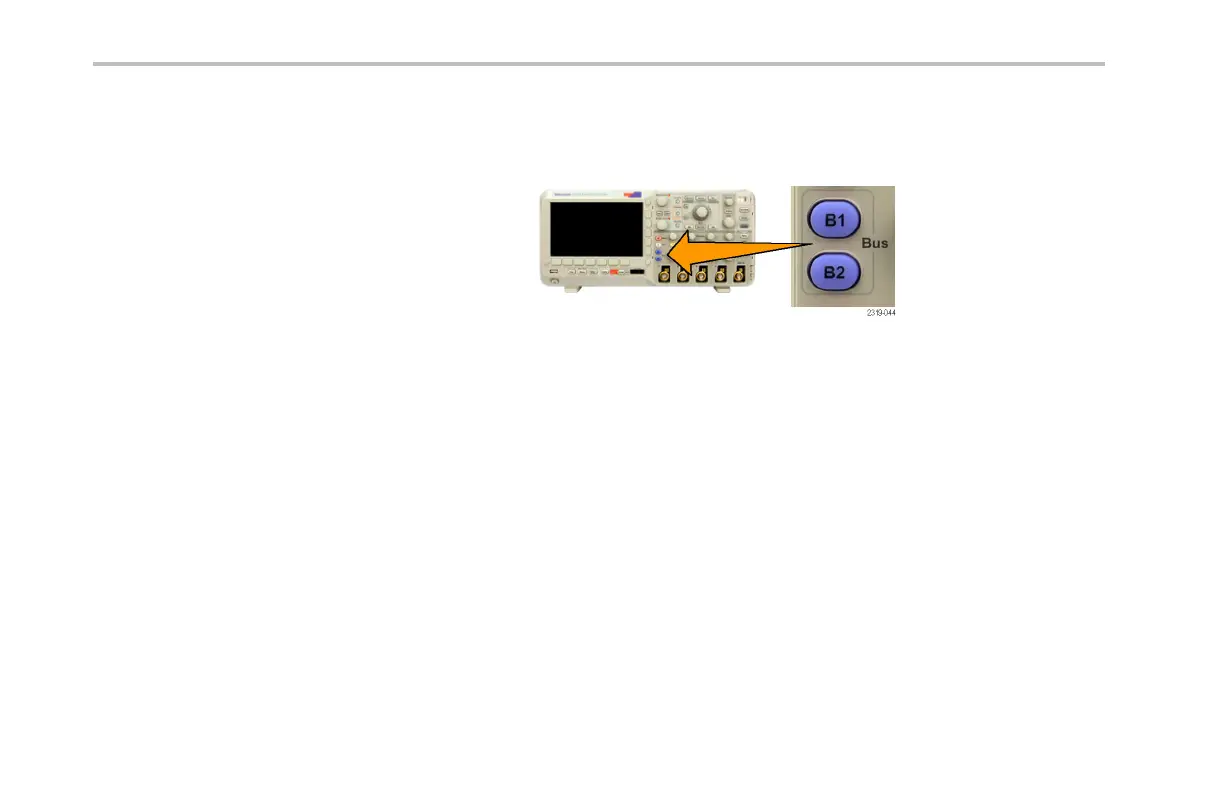

1. Push the ap propriate front-panel bus button
to select that bus.
162 DPO2000 and MSO2000 S eries Oscilloscopes User Manual
