Installation

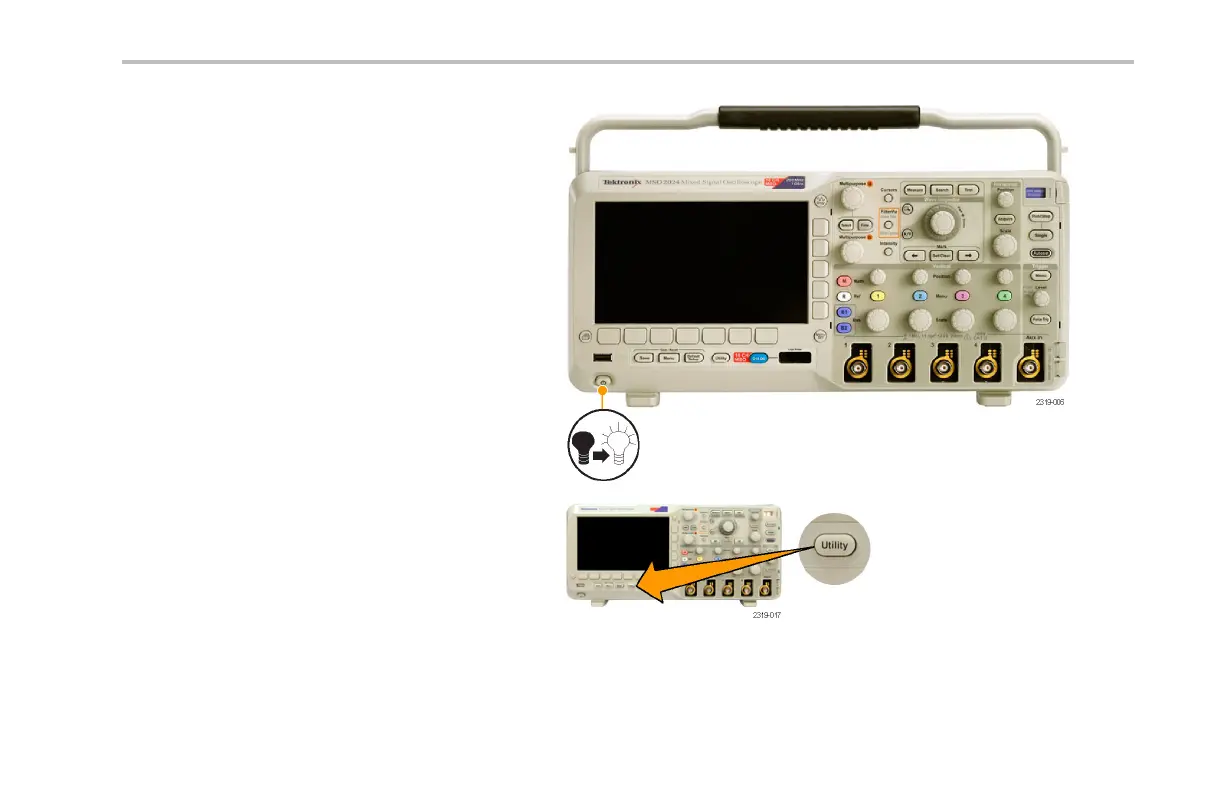

6. Power on the oscilloscope.

7. Push Utility.

DPO2000 and MSO2000 Series Oscilloscopes User Man ual 37
