Getting Acquainted with the Oscilloscope

Using the Menu System

To use the menu system:

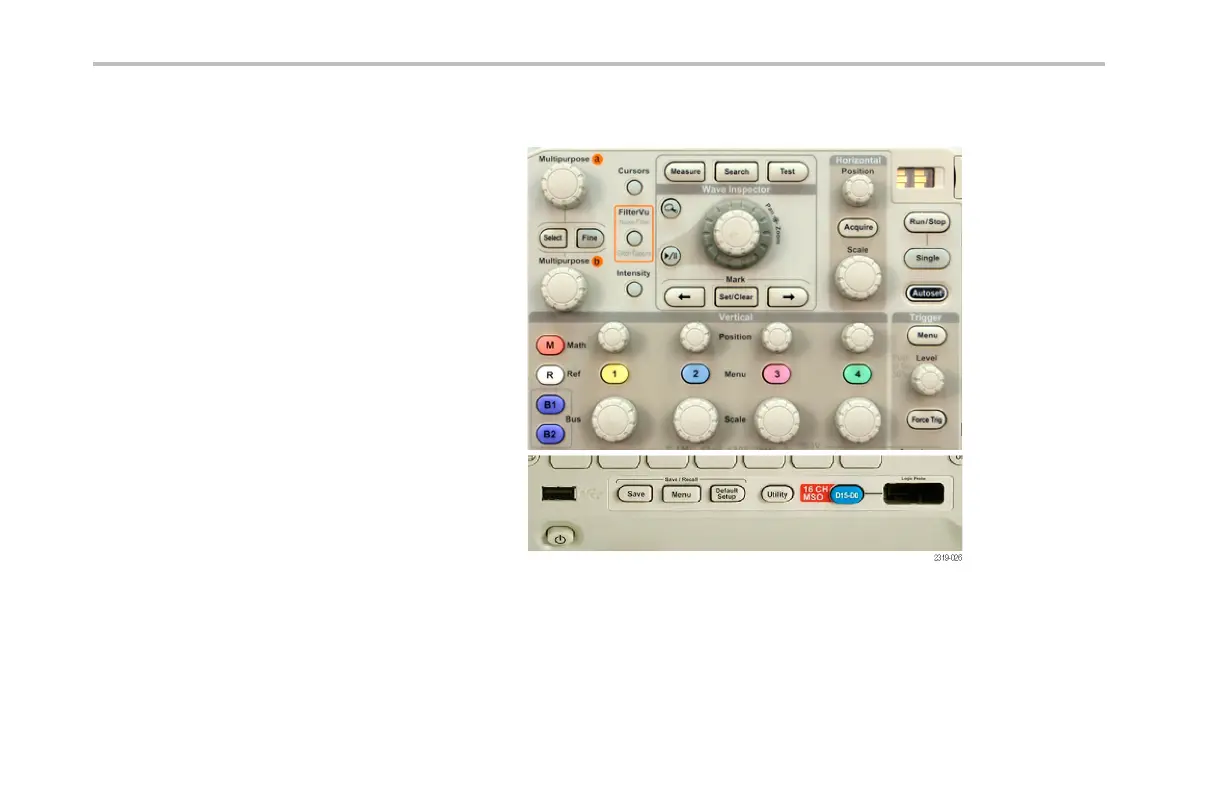

1. Push a front-panel m enu button to display

the menu that you want t o use.

48 DPO2000 and MSO2000 Series Oscilloscopes User Manual
