Getting Acquainted with the Oscilloscope
7. Turn the lower multipurpose knob b ,
when activated, to move a cursor or set
a numerica l parameter value fo r a menu
item. Push Fine to make adjustments
more slowly.

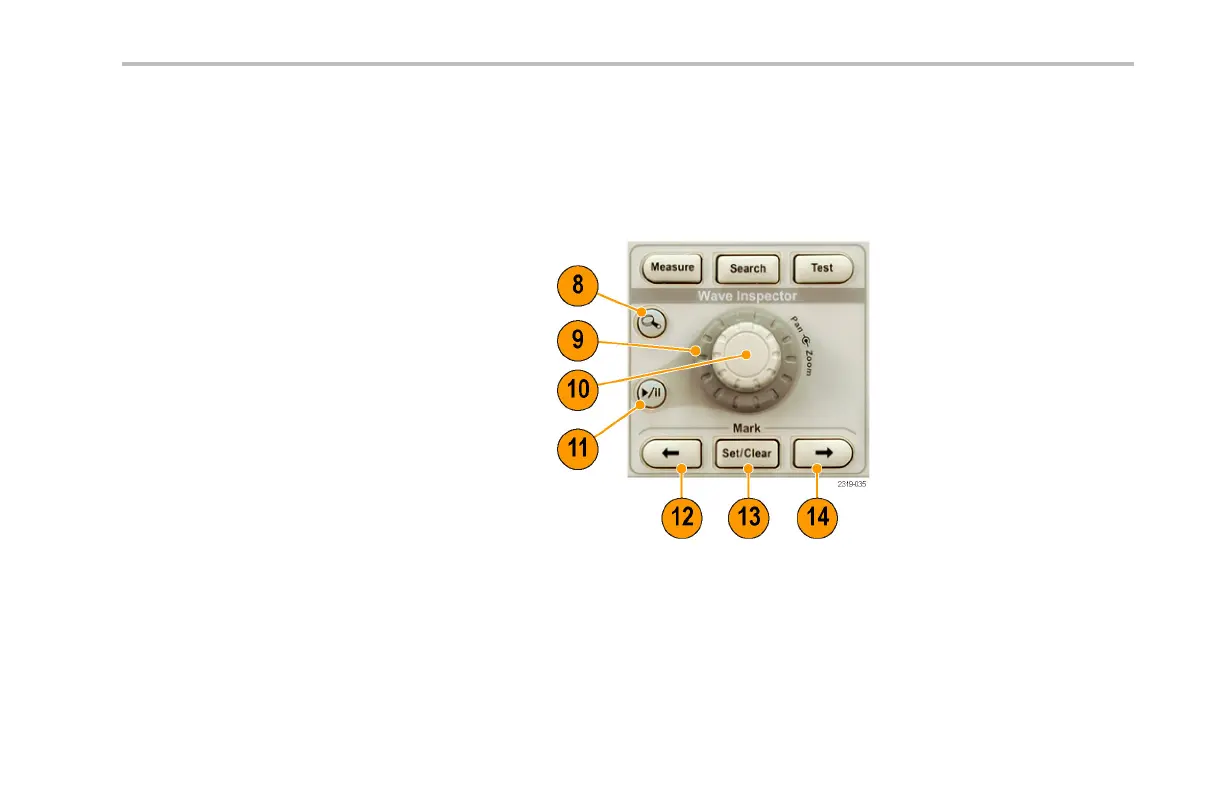

8. Zoom button. Push to activate zoom
mode.
9. Pan (outer knob). Turn to scroll the zoom
window thro ugh the acquired waveform.
10. Zoom (inner knob). Turn to control the
zoom factor. Turning it clockwise zooms in
further. Turning it counterclockwise zooms
out.
11. Play-pause button. Push to start or stop
the automatic panning of a waveform.
Control the speed and direction with the
pan knob.
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 57
