Tektronix MSO4000 Series User Manual

Analyze Waveform Data

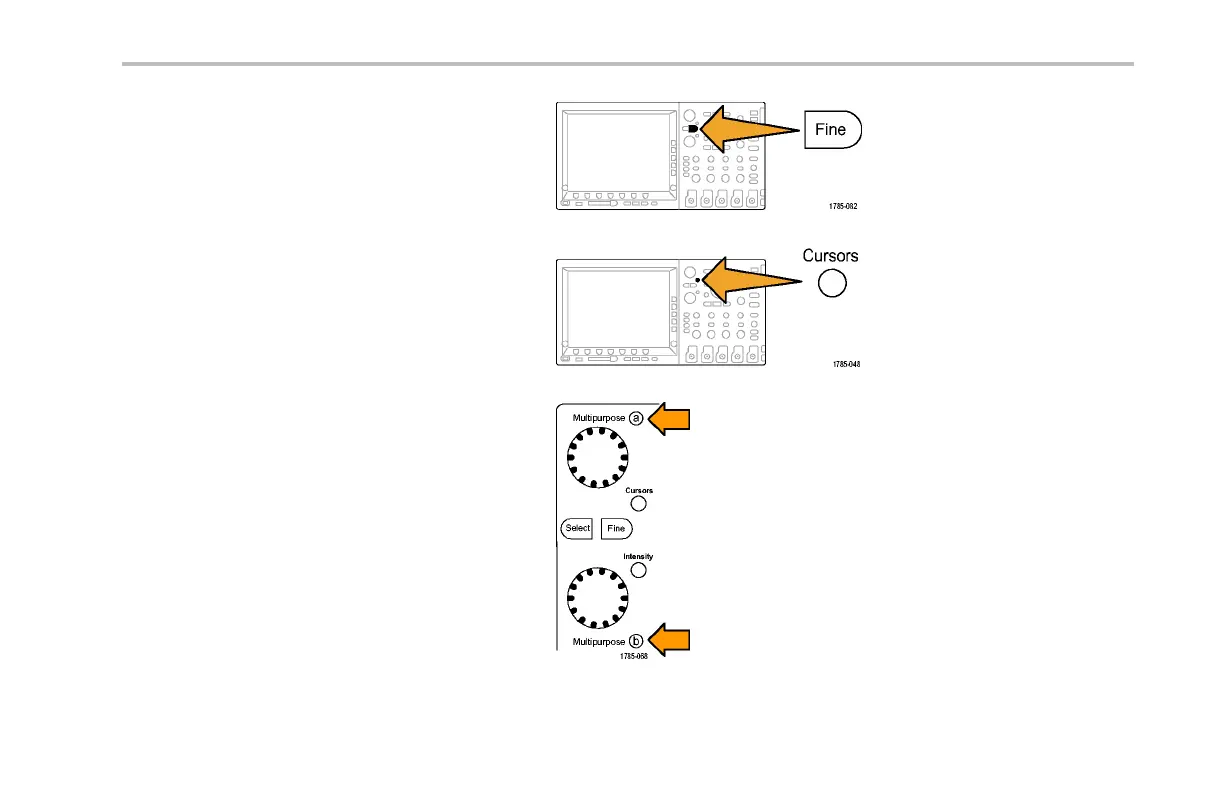

4. Push Fine to toggle between a coarse and
a fine adjustmen t fo r multipurpose knobs
a and b.
Pushing Fine also changes the sensitivity
of other knobs as well.
5. Push Cursors again.
This will put the cursors into screen mode.
Two horizontal bars and two vertical bars
span the graticule.
6. Turn multipurpose knobs a and b to move
the pair of horizontal cursors.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 209
