Application Examples
Measuring specific events. Next you wa nt to s e e the pulses in the incoming digital signal, but the pulse widths vary so it is hard
to establish a stable trigge r. To look at a snapshot of the digital signal, do this step:

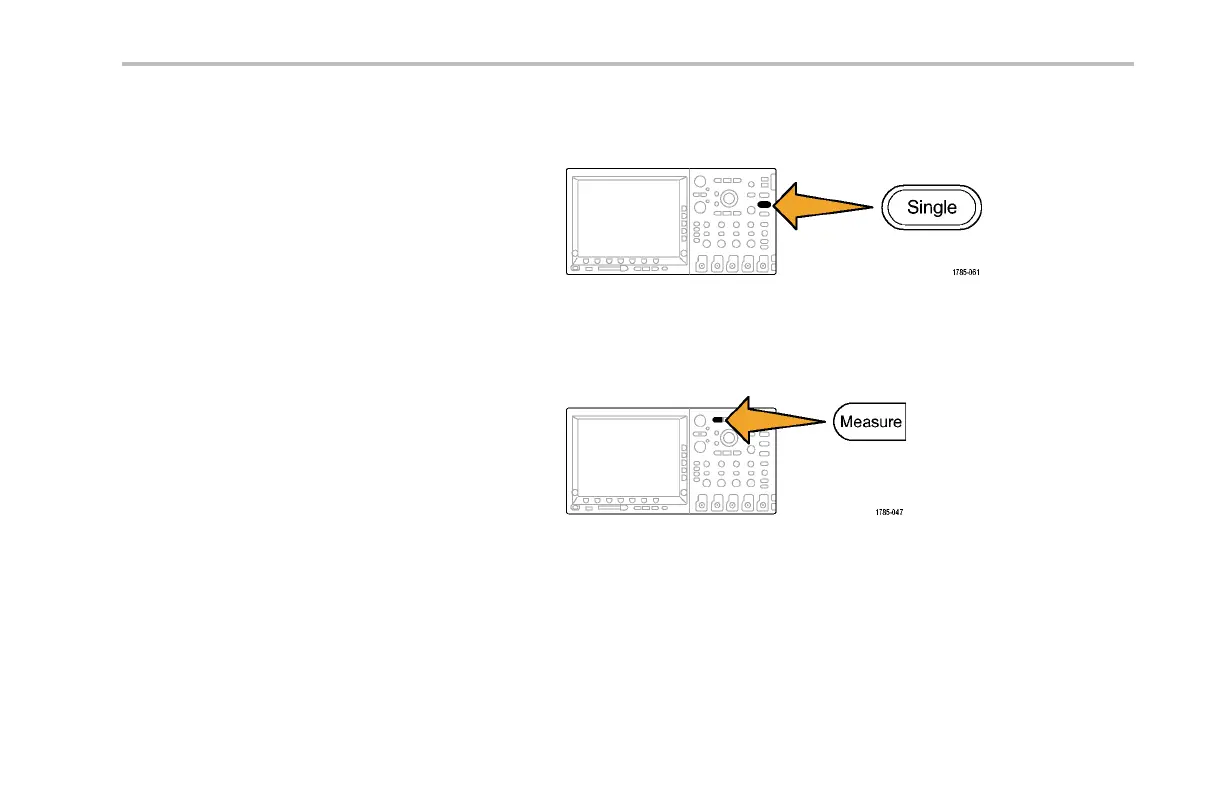

1. Push Single to capture a single acquisition.
This assumes that the oscilloscope will trigger
with the current settings.
Now you want to measure the width of each
displayed pulse. You can use measurement
gating to select a specific pulse to m easure.
To measure t he second pulse:
2. Push Measure.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 279
