Tektronix MSO4000 Series User Manual

Application Examples

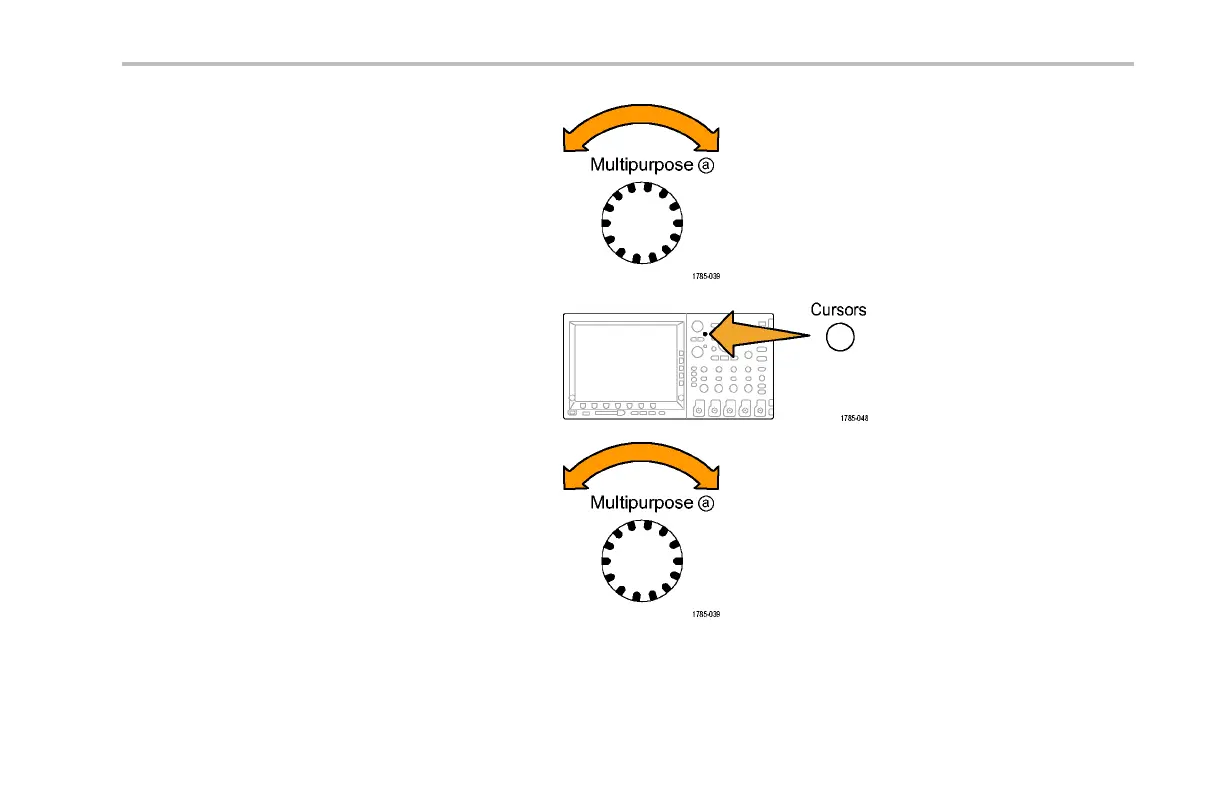

4. Push Vertical Bar Units fro m the side menu,
if this choice is not already selected. Turn
multipurpose knob a to select Hz (1/s) as the
unit of measurement.
5. Push Cursors repeatedly until the two vertical
bar cursors appear on the selected waveform.
6. Place one cursor on the first peak of the ring
using multipurpose knob a.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 289
