Tektronix MSO4032 Demo Instruction Manual

Giving Demos of M SO400 0 Features
2. Push the lower-bezel Edit Labels menu
button.
D15–D0
On/Off
Thresholds Edit Labels MagniVu
On |
Off
Height
S|
M|L
3. Use the keyboard to add labels for c hannels
D0 through D 6. Call them Count 0, Count
1, Count 2, C ount 3, Count 4, Count 5, and
Count 6. Use the keyboard’s Enter key or the
side menu’s down arrow key to select the next
channel to label.
Alternatively, you can add a label by
pressing Select Preset Label, then turning
multipurpose knob b to select a preset label
from a list, an d pressing the side menu Insert
Preset Label button. Try this out by adding
the preset label CLOCK to D7.

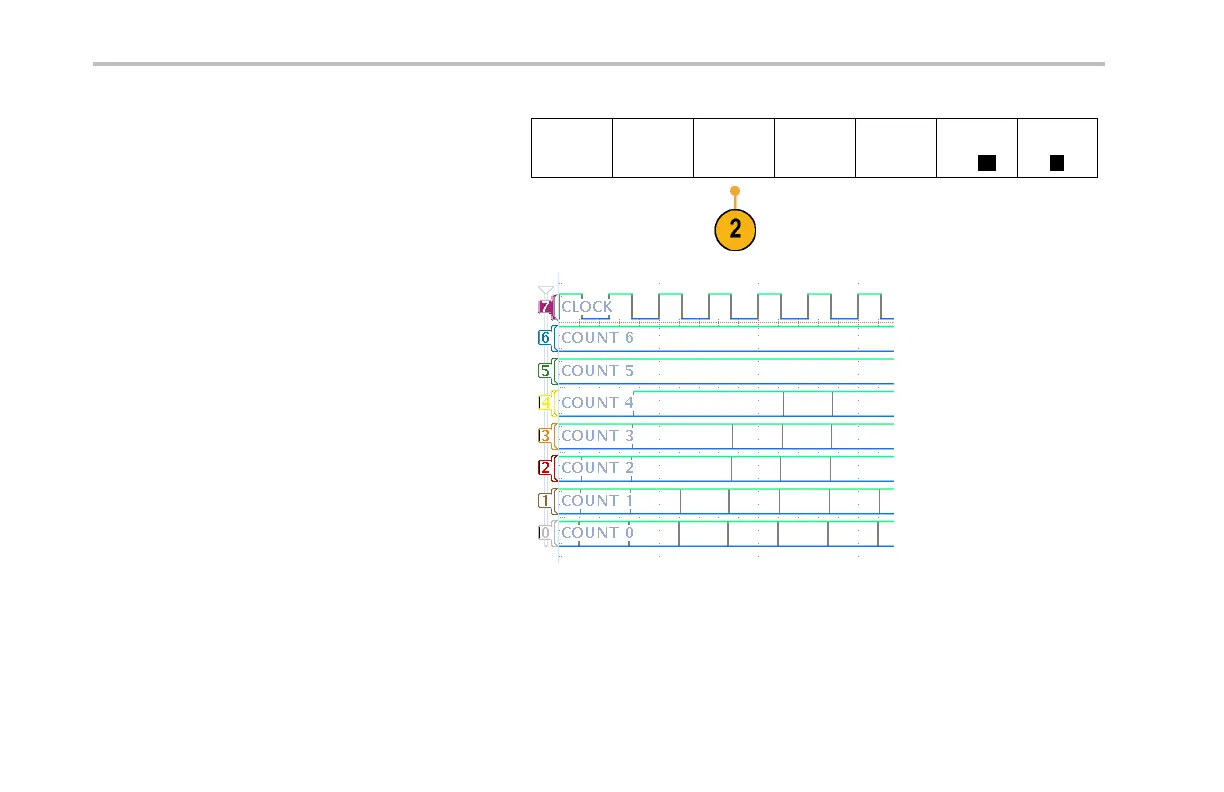

When done, admire your list of labels on the
screen.
