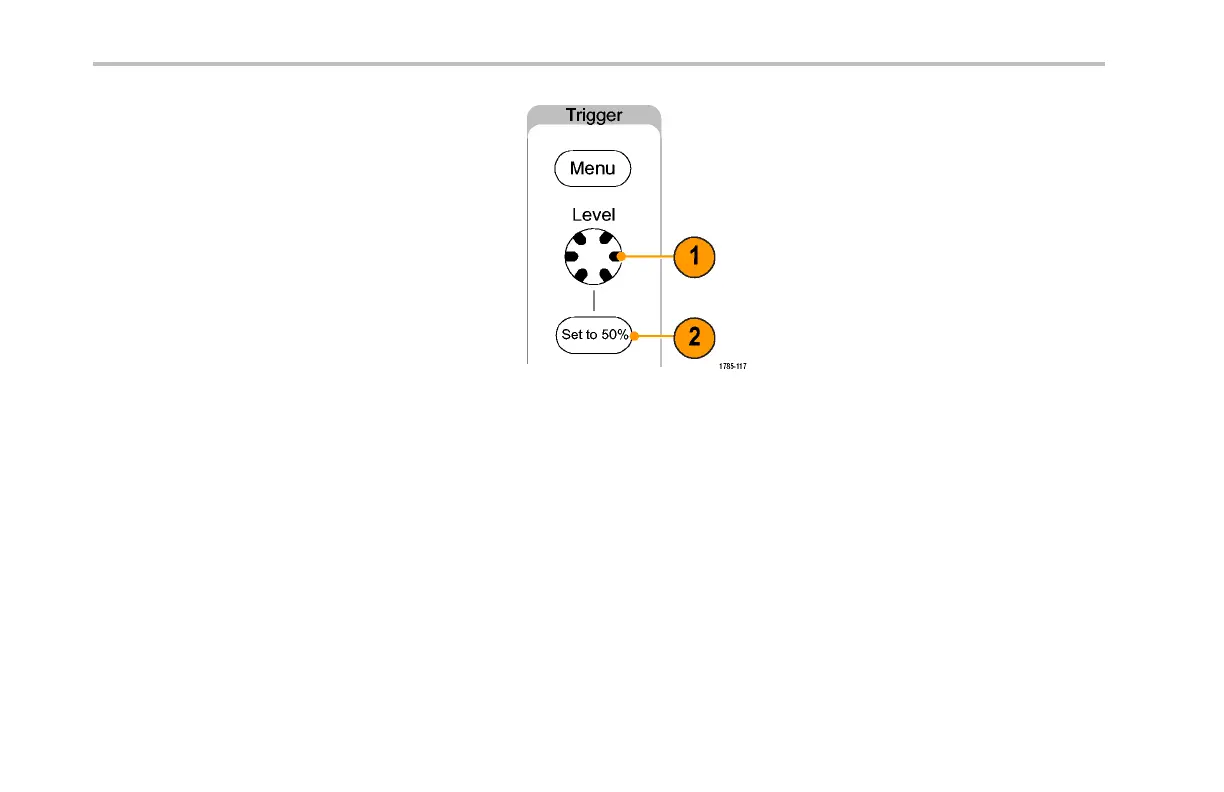

T
rigger
Setup
1.
Tu
rn
the
front-panel
Trigger
Level
knob
to
adjust
the
trigger
level
without
going
to
a
menu.
2.
Push
the
front-panel
Set
to
50%
button
to
quickly
set
the
trigger
level
to
the
midpoint
of
the
waveform.
136
MSO4000
and
DPO4000
Series
Oscilloscopes
User
Manual
