Giving Demos of MSO Features

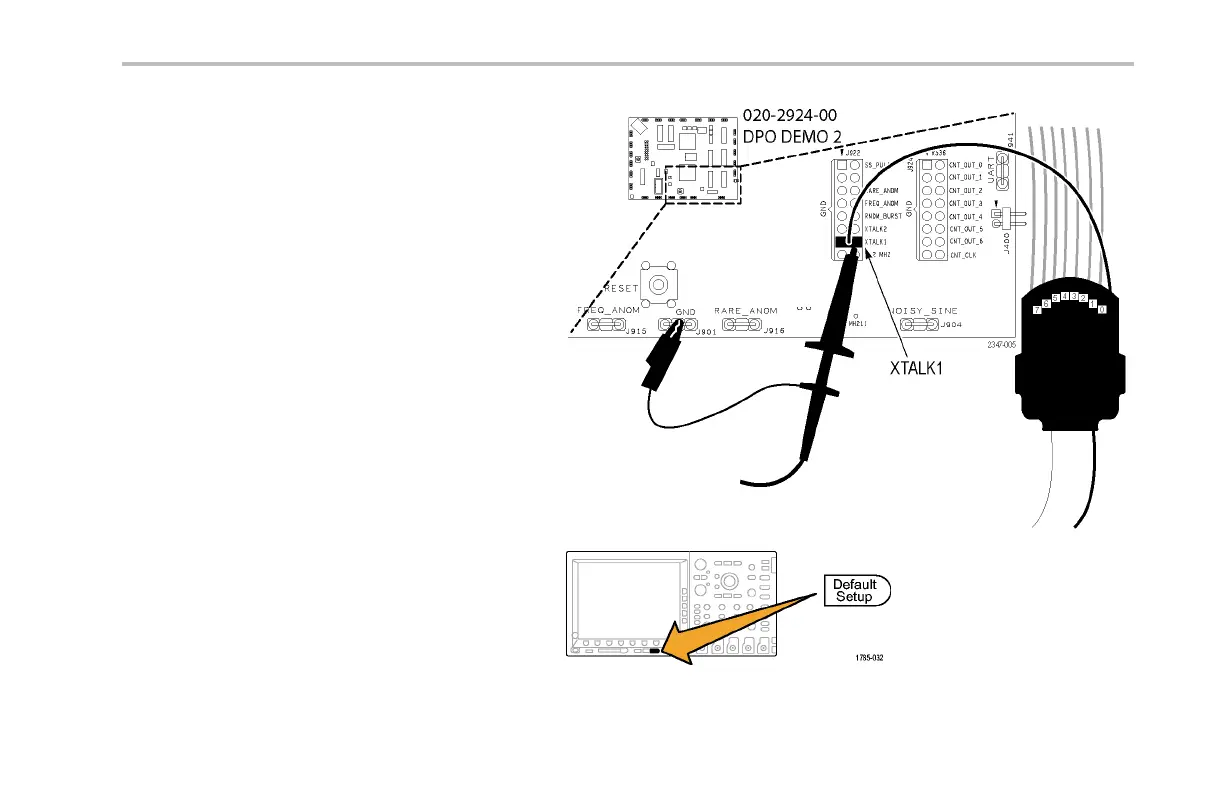

1. Attach a P6139 A probe to channel 1 on the
MSO4000 oscilloscope. Then attach the probe
to one of the GND points and to the XTALK
1 signal on the Demo 2 board.
2. Also attach a P6516 digital probe (D0) to the
XTALK 1 signal.
You have now a ttached both the analog and
the digital p robes to the same test point.
3. Push Default Setup.
Demo 2 Board Instruction Manua l 105
