Getting
Started
with
the
MSO/DPO2000
,
M
SO/DPO30
00,
a
nd
MSO/DPO4000
Series
Oscilloscopes
4.

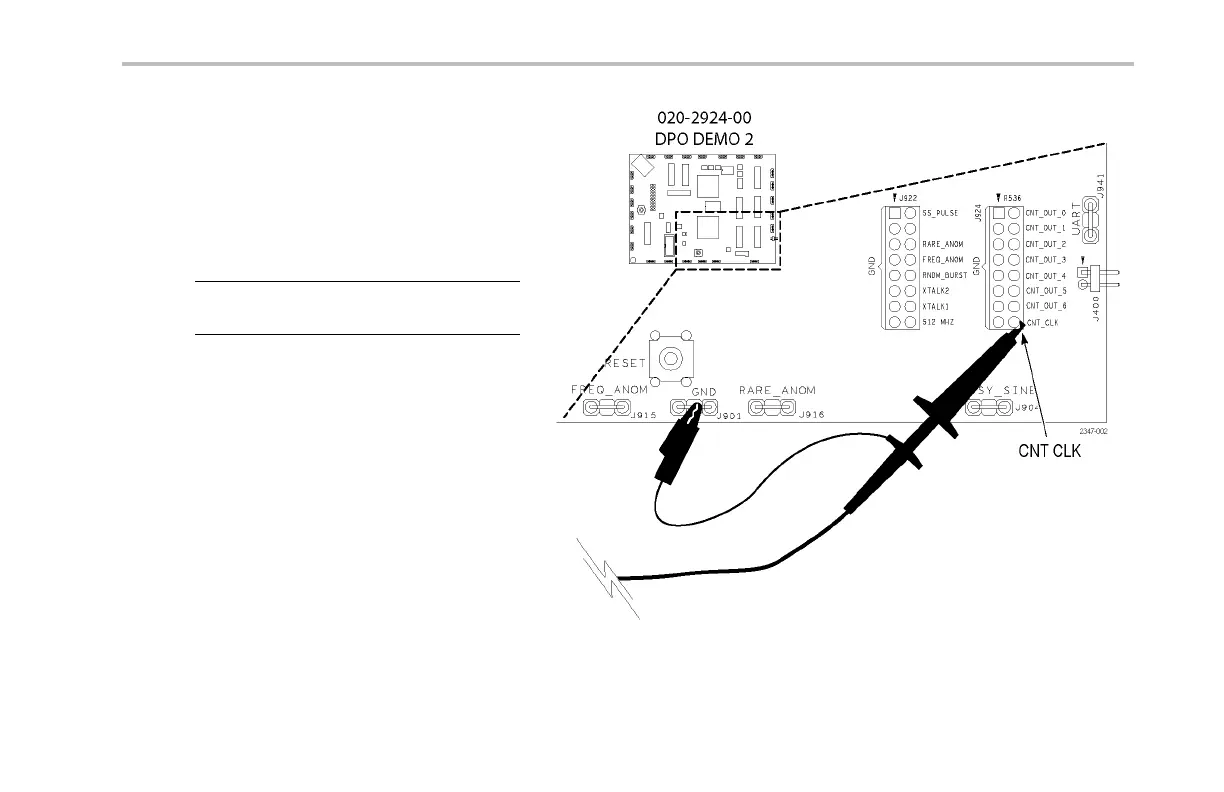

Connect
a
probe
to
channel
1,
such
as
the
P222
1
with
the
MSO/DPO2000
or
the
P
613
9A
with
the
MSO/DP
O
3000
or
MSO/DPO4000.
Then
connect
the
ground
lead
of
the
probe
to
a
point
lab
eled
GND
on
the
Demo
2
board.
Attach
the
p
robe
tip
to
th
e
square
pin
on
the
Demo
2
board
labeled
CN
T
CLK
.
NOTE.
CNT
CLK
is
a
clock
used
for
a
synchronous
counter
.
Demo
2
Board
Instruction
Manua
l
3
8
10
Table of Contents
Default Chapter
5
Table of Contents
5
Getting Started with the MSO/DPO2000, MSO/DPO3000, and MSO/DPO4000 Series Oscilloscopes
7
Gettingstartedwiththemso/Dpo2000 ,Mso/Dpo3000,Andmso/Dpo4000Seriesoscilloscopes
8
Demo I: Acquiring a Signal
8
Demo II: Using Vertical Controls
12
Demo III: Using Horizontal Controls
14
Demo IV: Using Run/Stop Controls
15
Demo V: Using Trigger Controls
15
Demo VI: Using Cursors
18
Demo VII: Taking Measurements
20
Demo VIII: Saving a Screen Image
23
Giving Demos of Advanced Oscilloscope Features
27
Overall Package
27
MSO/DPO4000 Series Performance
28
MSO/DPO3000 Series Performance
29
MSO/DPO2000 Series Performance
30
Wave Inspector Demos
31
Demo IX: Setting up I 2 C Signals
32
Demo X: Using the Wave Inspector's Zoom and Pan Functionality
37
Demo XI: Using the Wave Inspector's Search Functionality
43
Demo XII: Using Serial Triggering and Analysis
48
Demo XIII: Searching Serial Signals
61
Demo XIV: Monitoring and Decoding RS-232 Signals
65
Demo XV: Triggering on a Serial Data Pattern (E.g. RS-232)
73
Demo XVI: Filtervu (MSO/DPO2000)
76
Giving Demos of MSO Features
85
Ease of Use
85
Performance
85
Tour the MSO Front Panel
87
Demo XVII: Setting up Digital Channels (MSO2000, MSO3000, and MSO4000 Models)
88
Demo XVIII: Discovering Per-Channel Thresholds (MSO4000 Only)
95
Demo XIX: Labeling Channels (MSO2000, MSO3000, and MSO4000 Models)
97
Demo XX: Exploring Parallel Buses (MSO2000, MSO3000, and MSO4000 Models)
99
Demo XXI: Triggering on Parallel Bus Data Values (MSO2000, MSO3000, and MSO4000 Models)
105
Demo XXII: Searching for Parallel Bus Data Values (MSO2000, MSO3000, and MSO4000 Models)
108
Demo XXIII: Zooming in on White Edges (MSO4000 Only)
110
Troubleshooting
117
Locating Signals
118
